UPD78F0502AMCA-CAB-G - Renesas Electronics

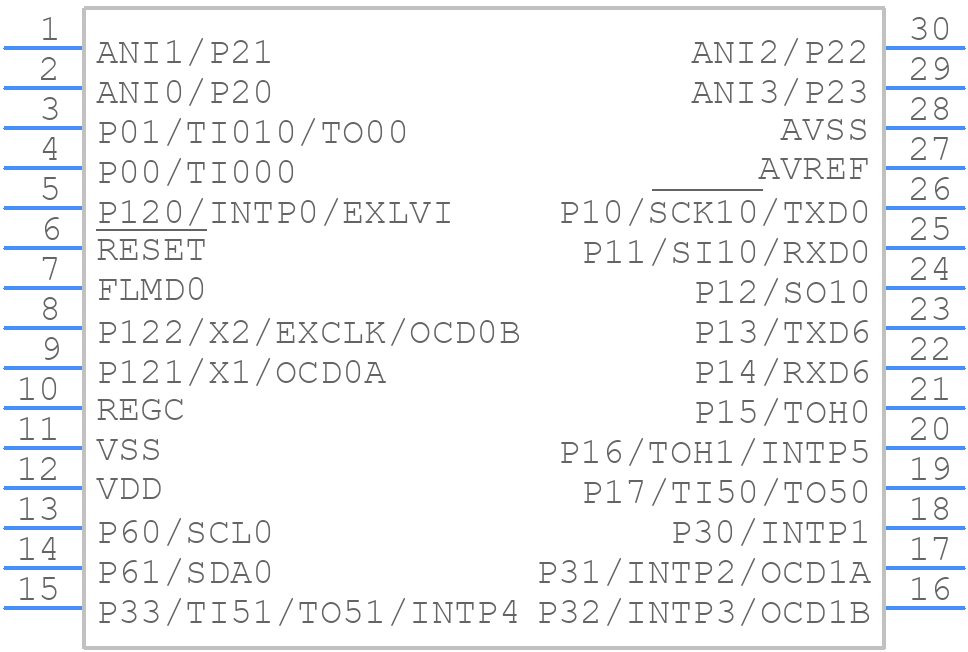

UPD78F0502AMCA-CAB-G Details

• Manufacturer Part Number:

  UPD78F0502AMCA-CAB-G

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• HTS Code:

  8542.31.00.15

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  UPD78K0

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G30

• Length:

  9.7 mm

• Number of I/O Lines:

  23

• Number of Terminals:

  30

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP30,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  1024

• ROM (words):

  24576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.4 mm

• Speed:

  20 MHz

• Supply Current-Max:

  6.9 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
