Description:The 78K0/Kx2-A Group is supported only for customers who have already adopted these products. The RL78/I1D Group is recommended for new designs.
The recommended oscillator crystal frequency for the UPD78F0562MC-CAA-AX is 12 MHz, as specified in the datasheet. However, it's essential to note that the oscillator circuit should be designed to ensure a stable clock signal, and the crystal frequency may need to be adjusted based on the specific application and board layout.
The watchdog timer (WDT) on the UPD78F0562MC-CAA-AX can be configured using the WDT control register (WDTCTL). The WDT can be enabled or disabled, and the timeout period can be set to one of several predefined values (e.g., 16 ms, 32 ms, 64 ms, etc.). Refer to the datasheet for the specific register settings and bit definitions.
The maximum current that can be sourced or sunk by the I/O pins of the UPD78F0562MC-CAA-AX is 20 mA per pin, with a total current limit of 100 mA for all I/O pins combined. However, it's essential to ensure that the total current consumption does not exceed the maximum rating to prevent overheating or damage to the device.
The UPD78F0562MC-CAA-AX has several low-power modes, including Stop mode, Sleep mode, and Hibernate mode. These modes can be entered by setting specific bits in the Power Management Control Register (PMC). In Stop mode, the CPU clock is stopped, while in Sleep mode, the CPU clock is reduced to a lower frequency. Hibernate mode is the lowest power consumption mode, where the CPU clock is stopped, and the internal voltage regulator is disabled.
The UPD78F0562MC-CAA-AX has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and consumer applications. However, it's essential to ensure that the device is operated within the recommended temperature range to maintain its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPD78F0562MC-CAA-AX Overview

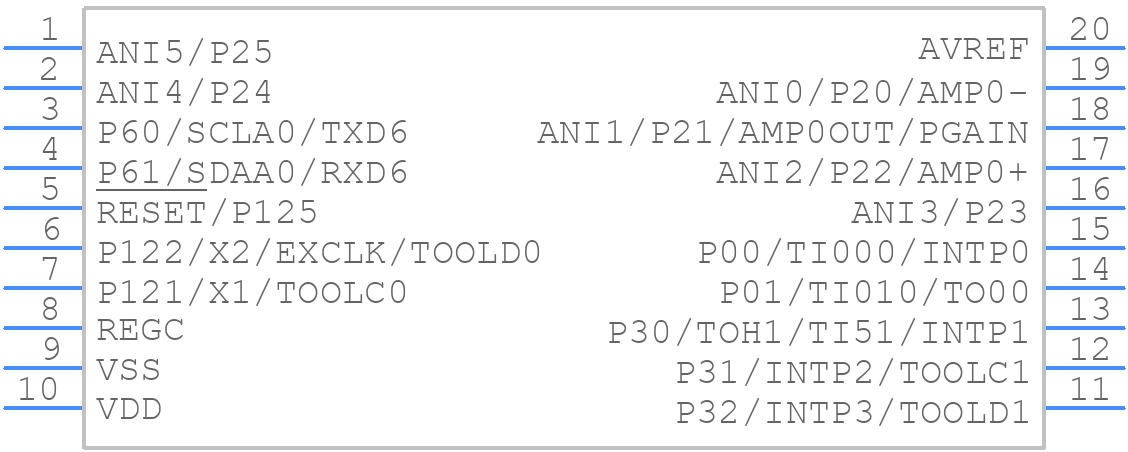

Use the download button to access the UPD78F0562MC-CAA-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD78,
or try a keyword search, such as Microcontrollers
