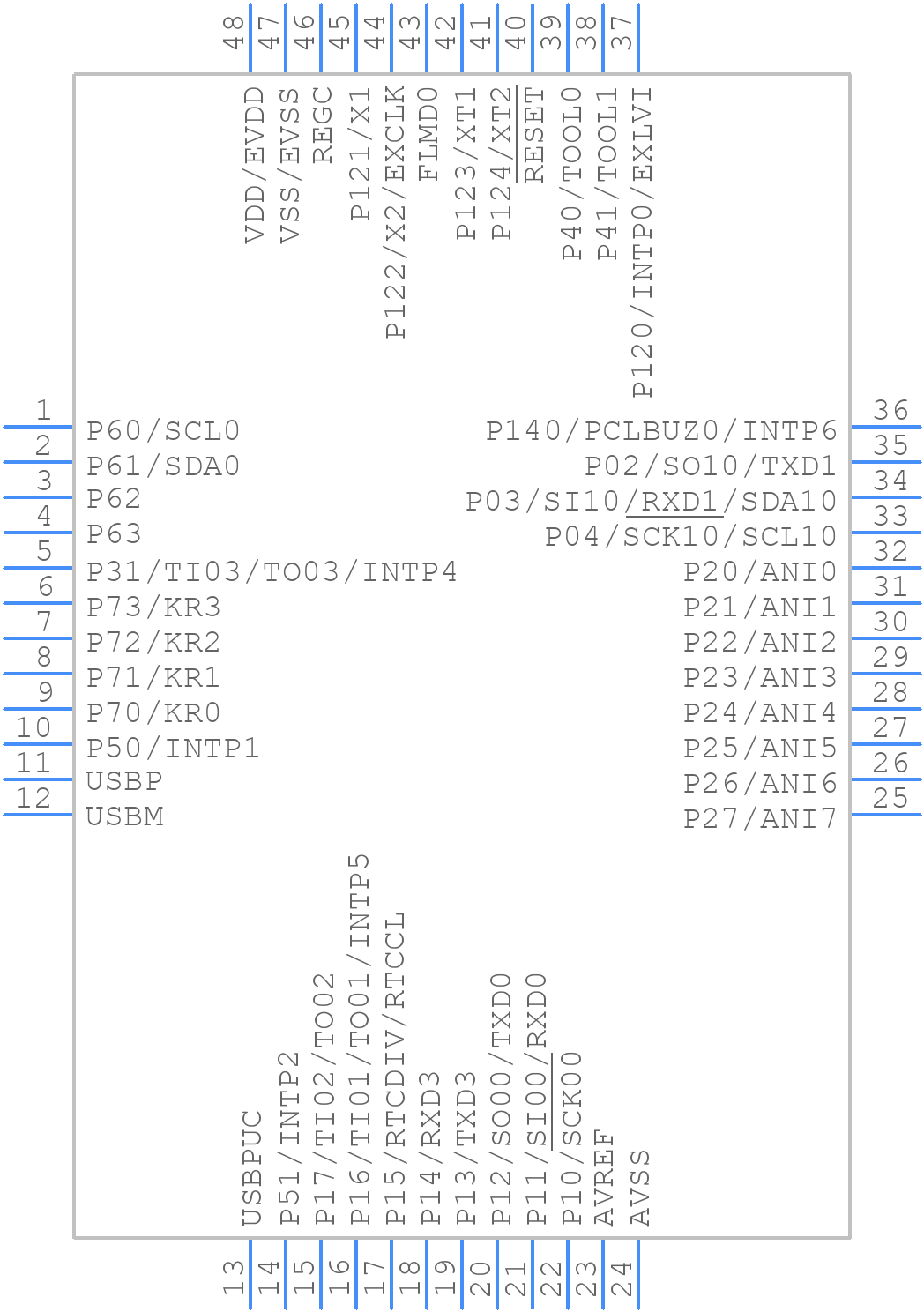

UPD78F1024GA-HAA-AX - Renesas Electronics

UPD78F1024GA-HAA-AX Details

• Manufacturer Part Number:

  UPD78F1024GA-HAA-AX

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  TFQFP

• Package Description:

  7 X 7 MM, LEAD FREE, PLASTIC, TQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  PTQP0048KC-A48

• HTS Code:

  8542.31.00.20

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  3

• Has ADC:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  UPD78K0R

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G48

• Length:

  7 mm

• Number of I/O Lines:

  38

• Number of Terminals:

  48

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  TQFP48,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  8192

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  20 MHz

• Supply Current-Max:

  8.6 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
