uPD78F4218AGF-3BA - Renesas Electronics

uPD78F4218AGF-3BA Details

• Manufacturer Part Number:

  UPD78F4218AGF-3BA

• Brand Name:

  Renesas

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

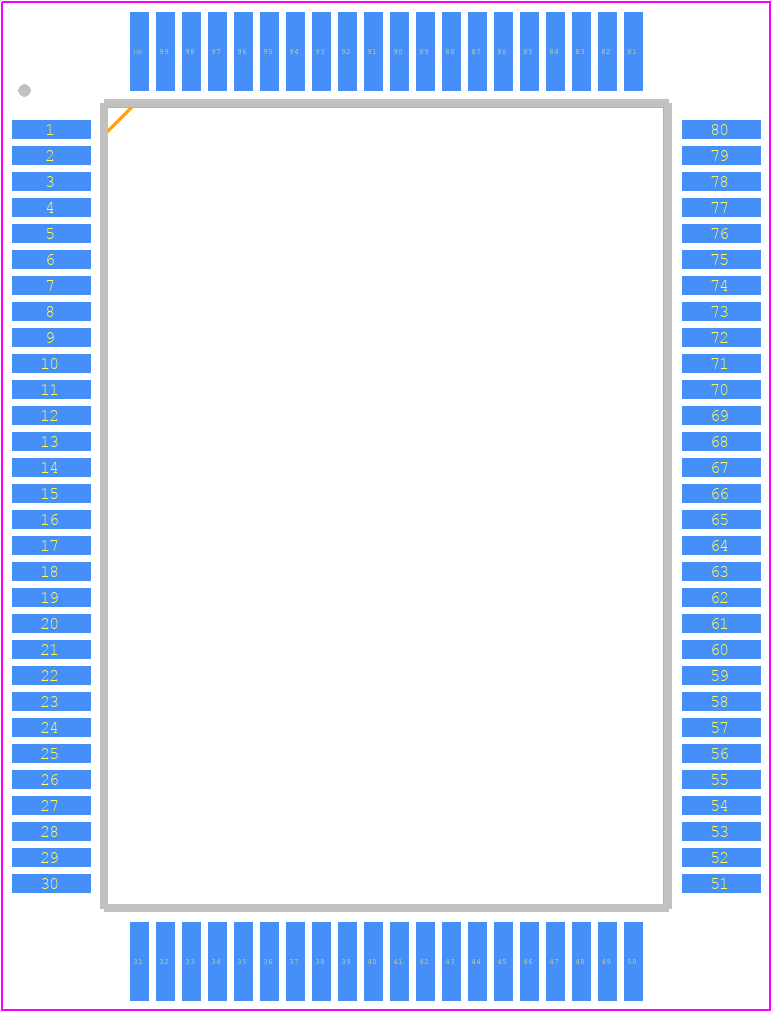

• Package Description:

  20 X 14 MM, PLASTIC, QFP-100

• Pin Count:

  100

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  20

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  UPD78K4

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• External Data Bus Width:

  8

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e0

• Length:

  20 mm

• Number of I/O Lines:

  86

• Number of Terminals:

  100

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP100,.7X.9

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  12800

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  3 mm

• Speed:

  25 MHz

• Supply Current-Max:

  40 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
