UPS-06-04.0-01-L-V footprint, schematic symbol and 3D model by SAMTEC

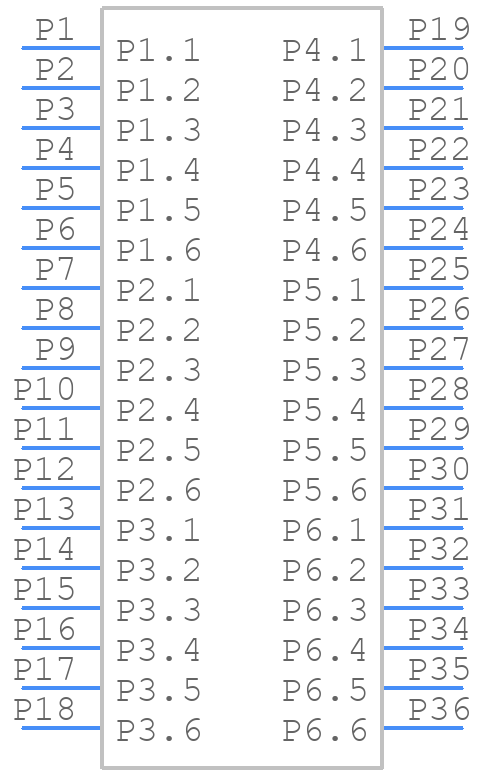

Symbol

click to zoom

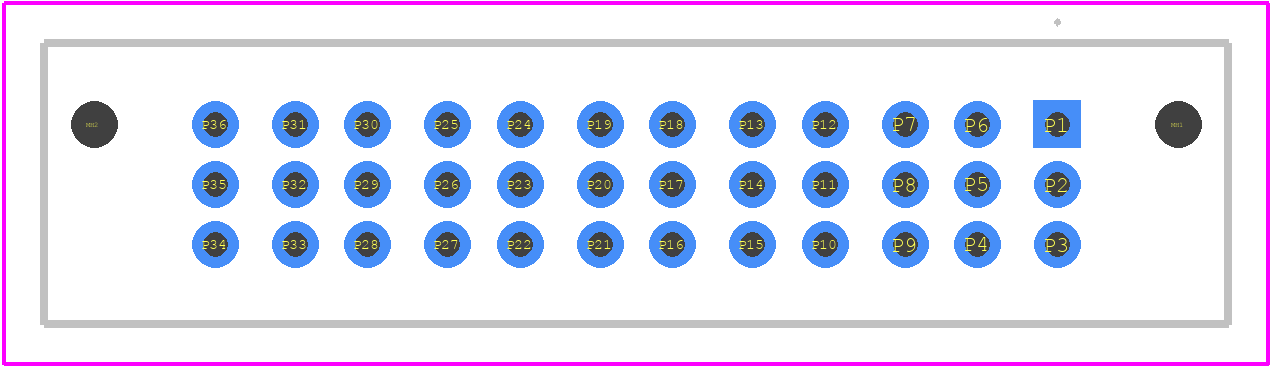

PCB Footprints

UPS-06-04.0-01-L-V - SAMTEC PCB footprint - Other - Other - UPS-06-04.0-01-L-V-1

click to zoom

3D Models

UPS-06-04.0-01-L-V - SAMTEC - 3D model - Other - UPS-06-04.0-01-L-V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPS-06-04.0-01-L-V
Part Number UPS-06-04.0-01-L-V
Manufacturer SAMTEC
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - UPS-06-04.0-01-L-V-1
Released Date Oct 29, 2025
Last Modified Date Oct 29, 2025 9:34 AM UTC
Pinout / Pin List Click Here (Member Only)

UPS-06-04.0-01-L-V Details

Manufacturer Part Number:
UPS-06-04.0-01-L-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Additional Feature:
POWER STRIP10
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
6

UPS-06-04.0-01-L-V Frequently Asked Questions (FAQs)

The operating temperature range of the UPS-06-04.0-01-L-V connector is -55°C to 125°C.
Yes, the UPS-06-04.0-01-L-V connector is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The mating cycle rating of the UPS-06-04.0-01-L-V connector is 500 cycles.
Yes, the UPS-06-04.0-01-L-V connector is designed to withstand high-vibration applications, making it suitable for use in rugged environments.
Yes, the UPS-06-04.0-01-L-V connector is designed for automated assembly processes, including pick-and-place and reflow soldering.
