The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the UPT2D821MRD is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The UPT2D821MRD is designed to handle surge currents up to 100A (100μs). However, it's essential to consider the capacitor's impedance, ESR, and thermal characteristics when designing for surge current applications.
Yes, the UPT2D821MRD capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
The recommended storage condition for UPT2D821MRD is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 70%. Avoid storing the capacitors in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPT2D821MRD Overview

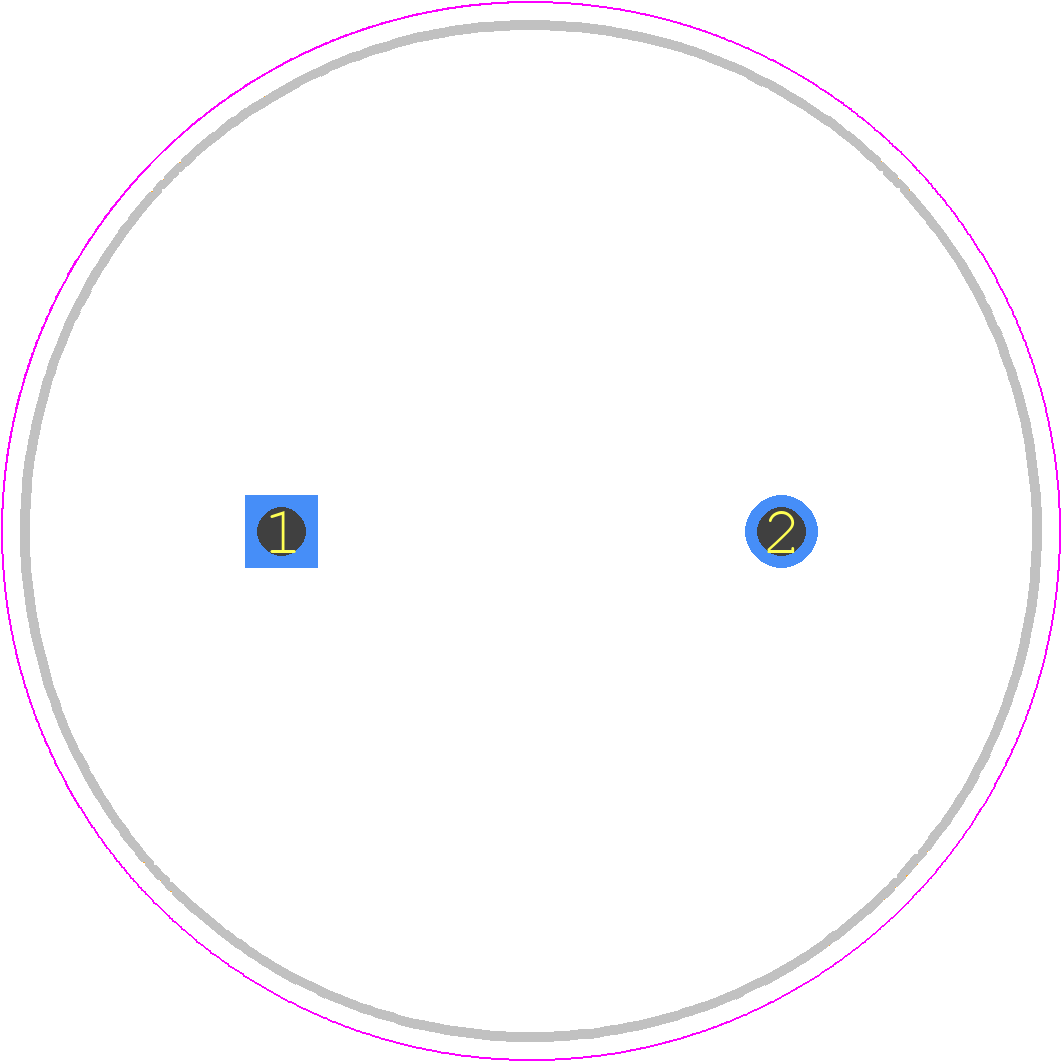

Use the download button to access the UPT2D821MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPT2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
