UPT2W181MRD - Nichicon

Description: 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

Download UPT2W181MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UPT2W181MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

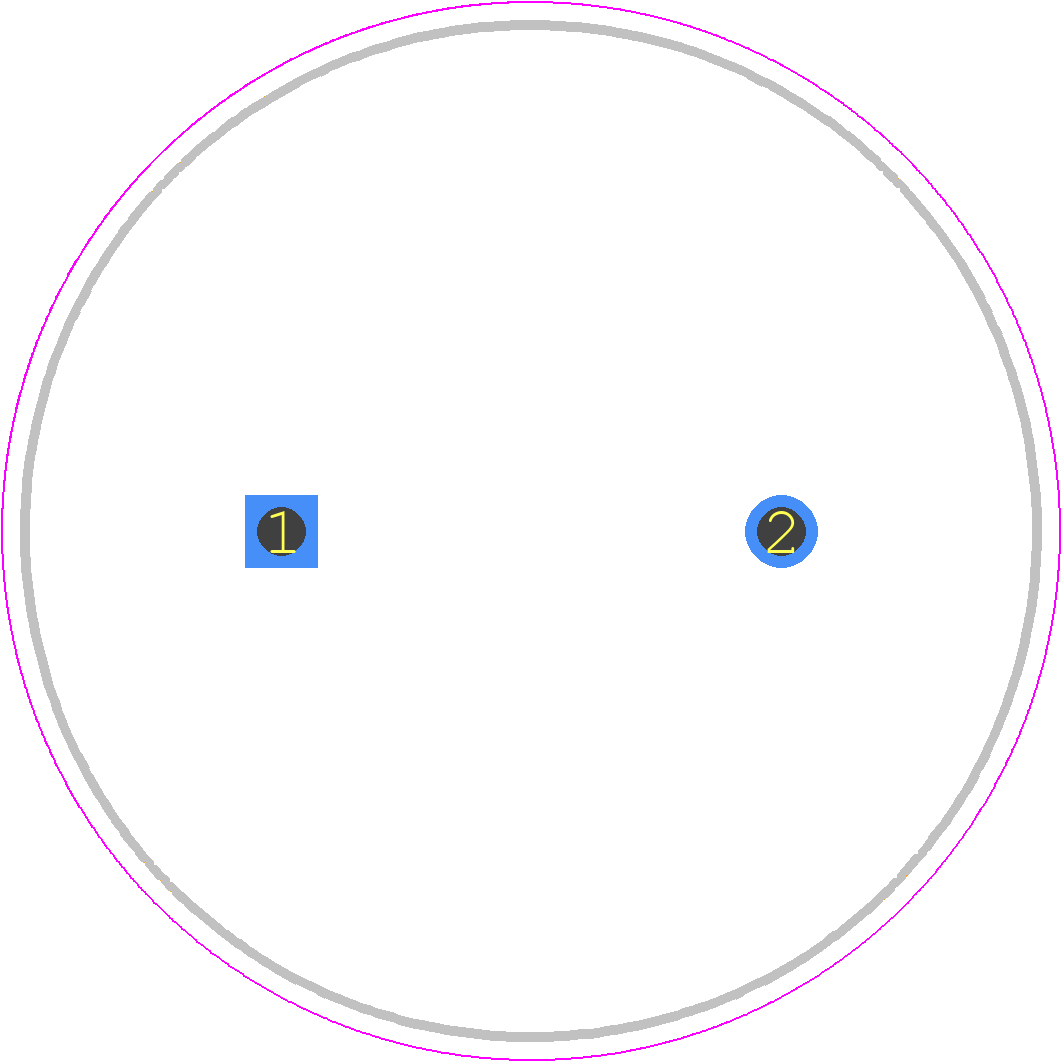

UPT2W181MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25X50
click to zoom
3D Models
UPT2W181MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25X50
click to zoom

UPT2W181MRD Details

  • Manufacturer Part Number:

    UPT2W181MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    180 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    4.87 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1100 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    12.5 mm

  • Terminal Shape:

    WIRE

UPT2W181MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the UPT2W181MRD capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the UPT2W181MRD capacitor can be obtained from Nichicon Corporation's application notes or by contacting their technical support. The derating curve provides guidance on reducing the capacitor's voltage rating at high temperatures to ensure reliable operation.
  • Yes, the UPT2W181MRD capacitor is designed to withstand high-vibration environments. However, it's recommended to consult with Nichicon Corporation's technical support to determine the capacitor's suitability for a specific vibration profile.
  • The ESR of the UPT2W181MRD capacitor is not explicitly stated in the datasheet, but it can be obtained from Nichicon Corporation's technical support or by consulting their application notes. ESR is an important parameter for high-frequency applications.
