UPW2A221MHD6 - Nichicon

Description: Aluminum Electrolytic Capacitors - Radial Leaded 100volts 220uF 20% 18X20 7.5LS

Download UPW2A221MHD6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UPW2A221MHD6 - Nichicon - PCB symbol
click to zoom
PCB Footprints

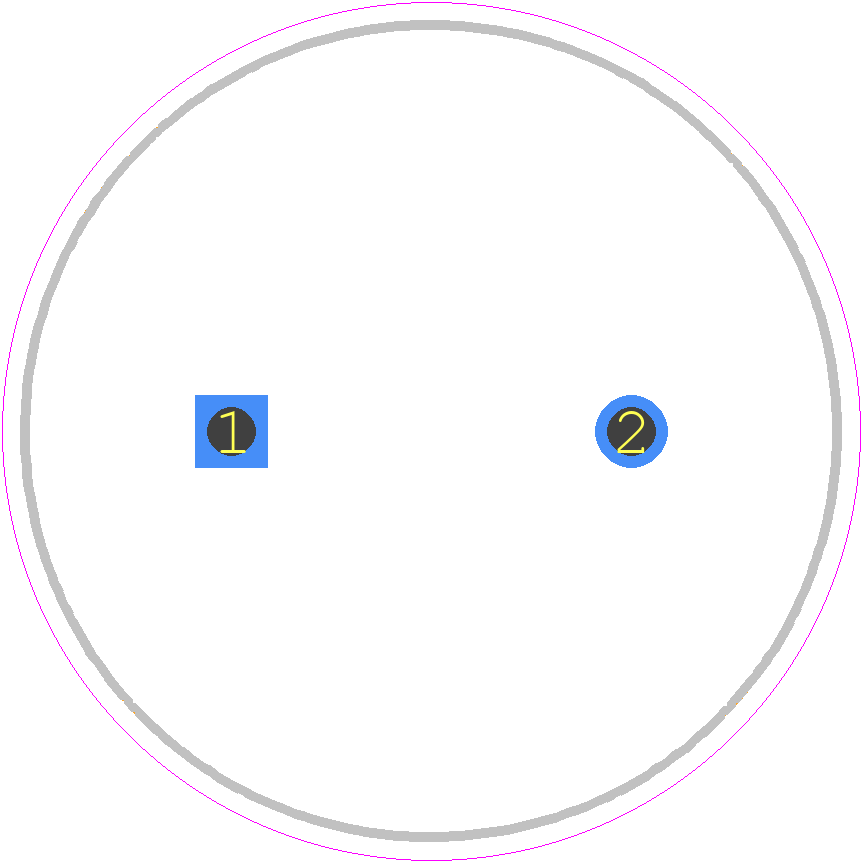

UPW2A221MHD6 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - UPW2A221MHD6
click to zoom
3D Models
UPW2A221MHD6 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - UPW2A221MHD6
click to zoom

UPW2A221MHD6 Details

  • Manufacturer Part Number:

    UPW2A221MHD6

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.24

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.66 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    552.5 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

UPW2A221MHD6 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the UPW2A221MHD6 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The derating curve for the UPW2A221MHD6 capacitor can be found in the Nichicon Corporation's application notes or by contacting their technical support. The derating curve shows the reduction in capacitance and voltage rating at high temperatures.
  • Yes, the UPW2A221MHD6 capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The ESR of the UPW2A221MHD6 capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and temperature. For more accurate information, please consult the datasheet or contact Nichicon Corporation's technical support.
