Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a bulk capacitor with a minimum capacitance of 10uF to filter the input voltage. Additionally, a slow-start circuit can be used to control the output voltage rise time.
The maximum allowed input voltage ripple for the URAM3C21 is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
The URAM3C21 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% for every 1°C above 80°C to ensure reliable operation. Additionally, ensuring good airflow and thermal management is crucial in high-temperature environments.
Vicor recommends checking the input voltage, output voltage, and output current to identify the source of the issue. Additionally, checking the module's temperature, and ensuring proper thermal management can help identify thermal-related issues. Vicor also provides a troubleshooting guide in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
URAM3C21 Overview

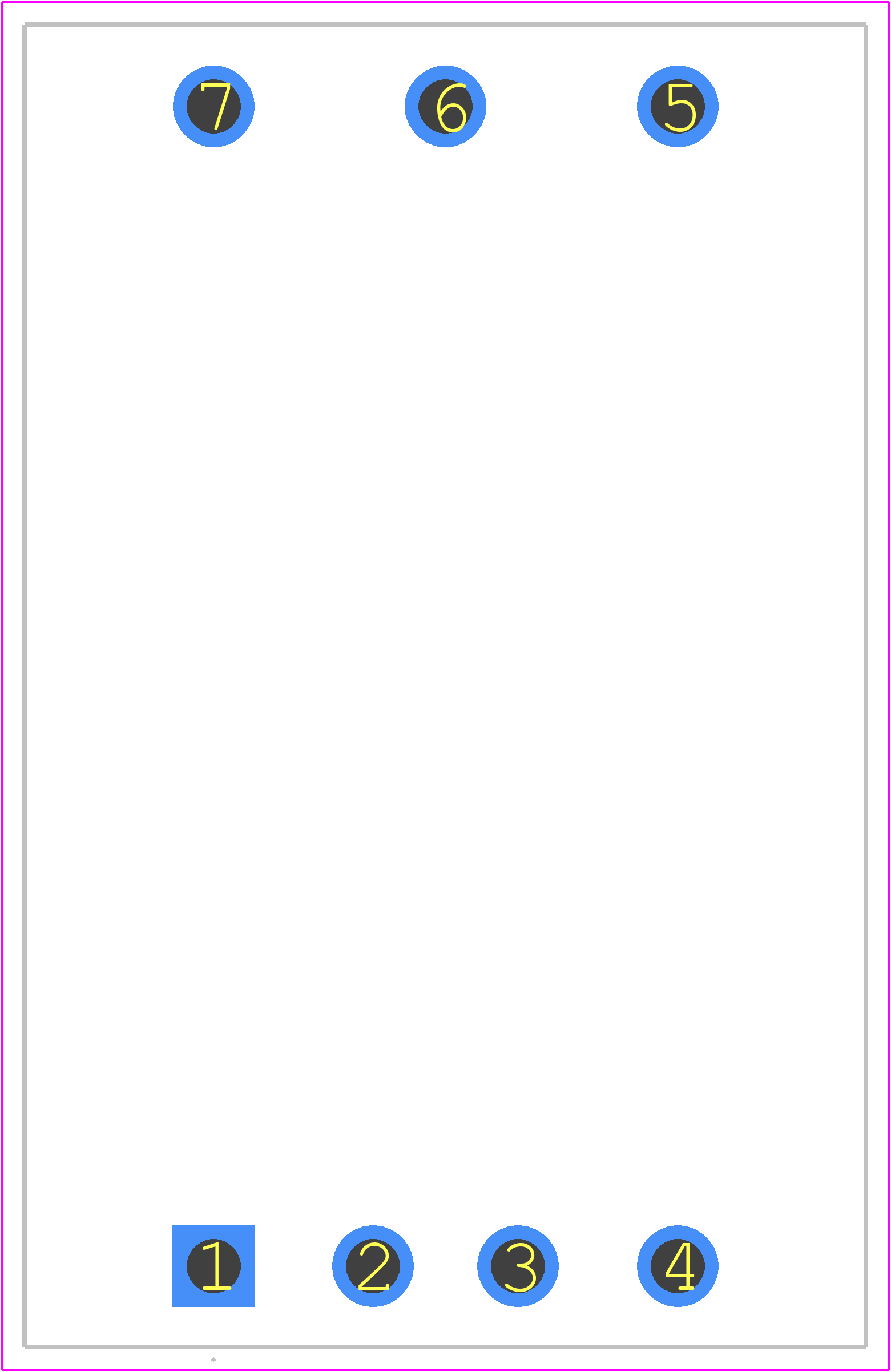

Use the download button to access the URAM3C21 schematic symbol, PCB footprint, and 3D model.
