URB2403MT-3WR3 - Mornsun Power

Description: DC/DC Regulated Power Supply Module, 1 Output, 2.4024W, Hybrid

Download URB2403MT-3WR3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

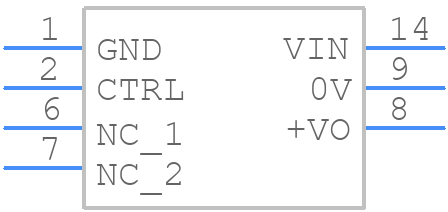

URB2403MT-3WR3 - Mornsun Power - PCB symbol
click to zoom
PCB Footprints

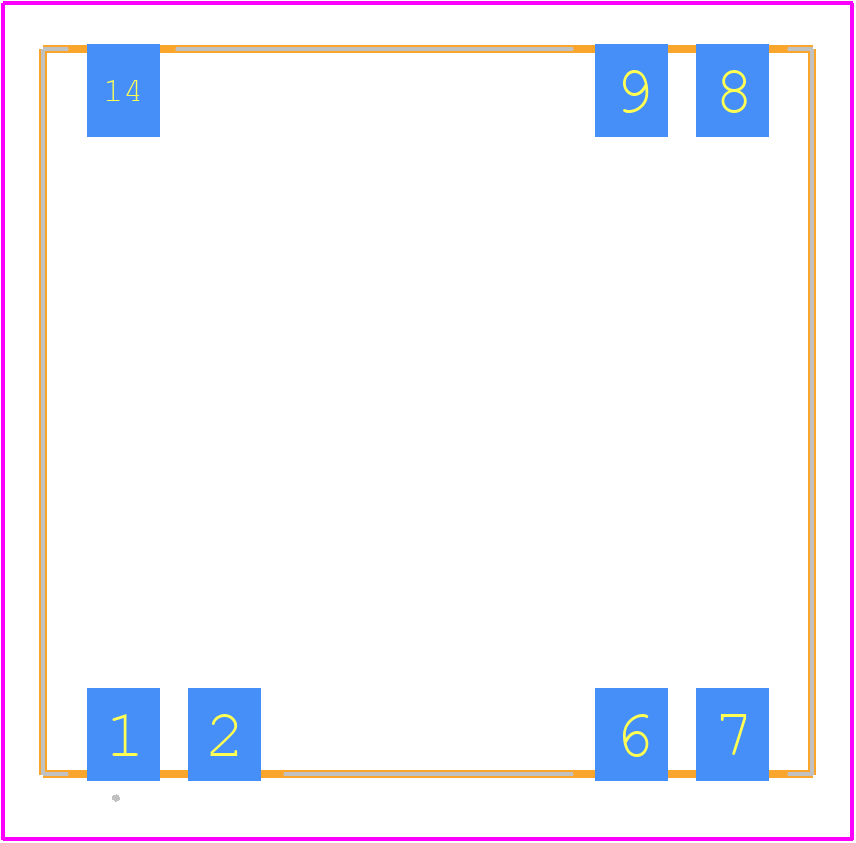

URB2403MT-3WR3 - Mornsun Power PCB footprint - Other - Other - URB2403MT-3WR3-1
click to zoom
3D Models
URB2403MT-3WR3 - Mornsun Power - 3D model - Other - URB2403MT-3WR3-1
click to zoom

URB2403MT-3WR3 Details

  • Manufacturer Part Number:

    URB2403MT-3WR3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-14/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    MORNSUN

  • YTEOL:

    6

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-C7

  • Length:

    19.2 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.399 V

  • Output Voltage-Min:

    3.201 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    C BEND

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2.4024 W

  • Trim/Adjustable Output:

    NO

  • Width:

    18.1 mm

URB2403MT-3WR3 Frequently Asked Questions (FAQs)

  • MORNSUN recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended.
  • Yes, the URB2403MT-3WR3 is designed to withstand high vibrations. However, it's recommended to follow the recommended PCB mounting and screw torque to ensure reliable operation.
  • MORNSUN recommends derating the output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and a clean, dry environment to prevent moisture ingress.
  • MORNSUN recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage range. This helps to reduce input ripple and ensure stable operation.
  • Yes, but it's recommended to consult with MORNSUN's application engineers to ensure proper design and layout to avoid oscillations and ensure reliable operation.
