A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the tab of the device, and to use thermal vias to dissipate heat to the other side of the board. Additionally, keeping the components away from the device and using a thermal gap pad can help to improve thermal performance.
To ensure the device is properly soldered, use a soldering iron with a temperature of 250-270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the time the iron is in contact with the device, and avoid applying excessive force or pressure.
When handling the device, take precautions to prevent electrostatic discharge (ESD) by wearing an ESD wrist strap or using an ESD mat. Avoid touching the device's pins or components, and handle the device by the body or pins only.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, and verify that the device is not being operated outside of its recommended specifications.
Operating the device outside of its recommended specifications can lead to reduced reliability, decreased performance, and potentially even damage to the device. It is essential to ensure that the device is operated within its recommended specifications to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
URB2405ZP-6WR3 Overview

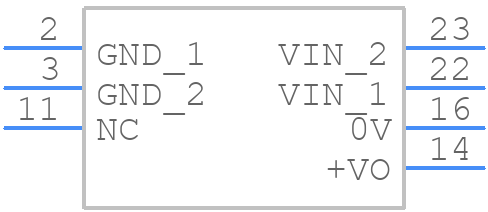

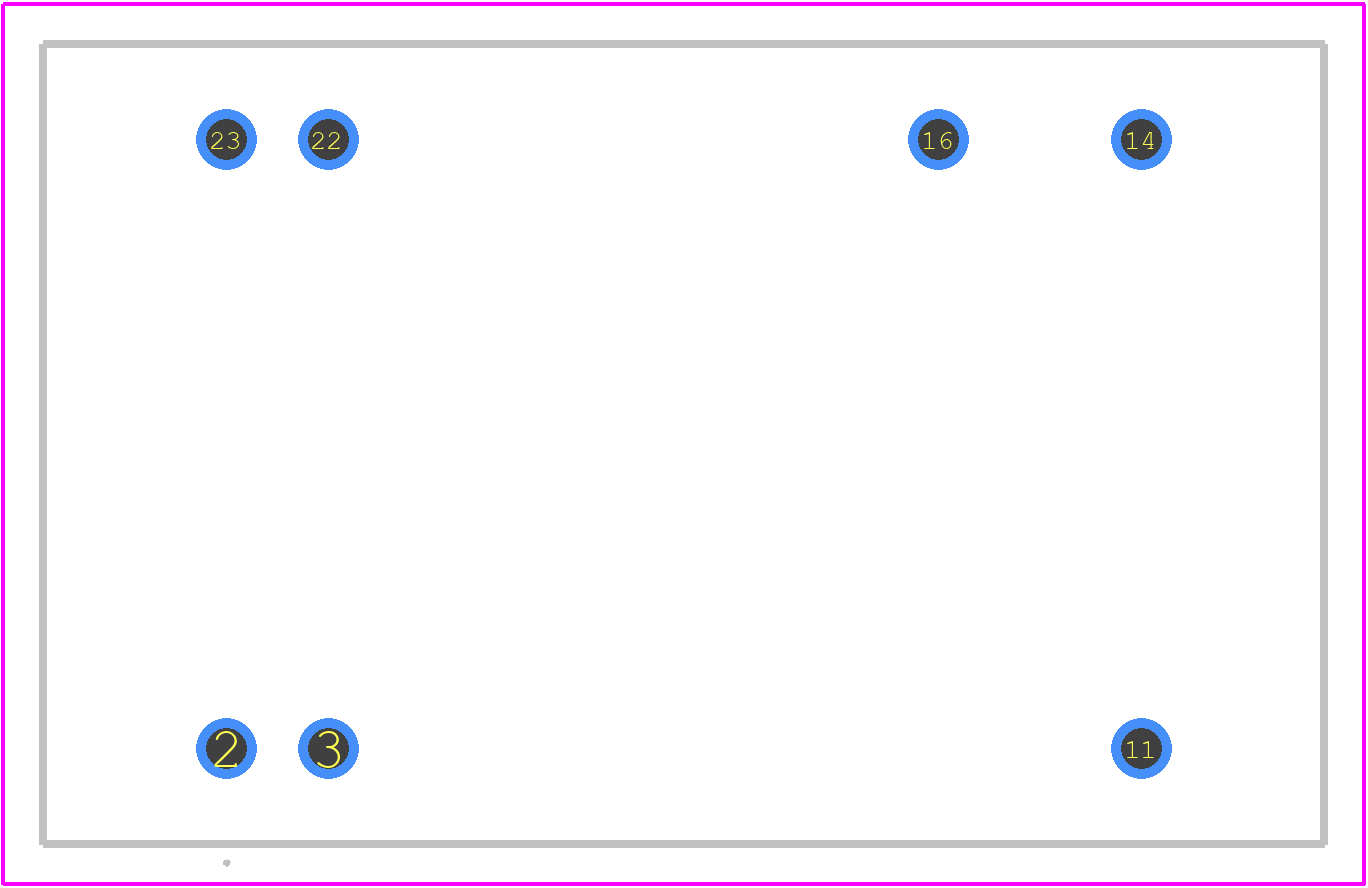

Use the download button to access the URB2405ZP-6WR3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like URB24,
or try a keyword search, such as Power Supply Modules
