USB-B-S-RA - Multicomp Pro

USB-B-S-RA Details

• Manufacturer Part Number:

  USB-B-S-RA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  SPC Multicomp

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.418 inch

• Body Depth:

  0.649 inch

• Body Length:

  0.474 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  USB CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  TIN

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  30 mΩ

• Contact Style:

  USB, SER B SQ

• Dielectric Withstanding Voltage:

  500VAC V

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

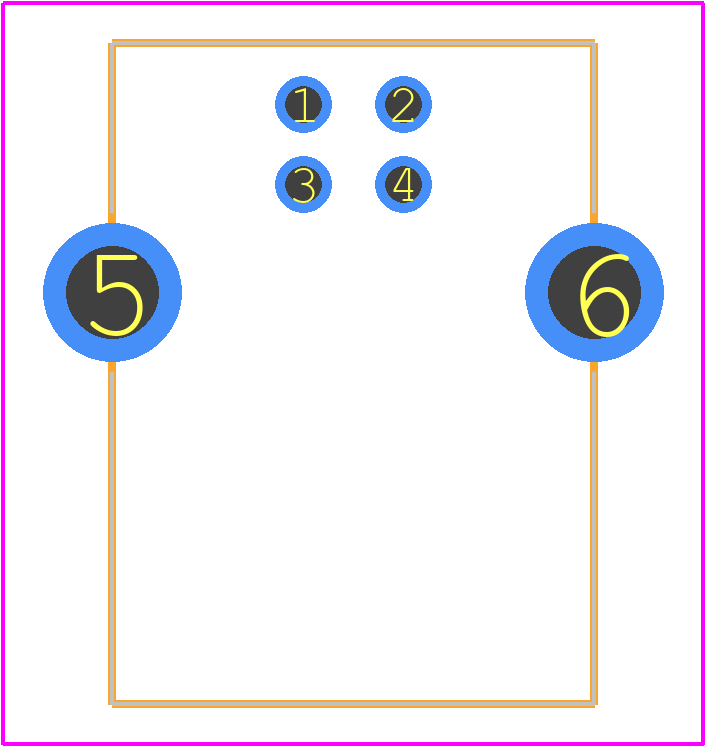

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.0066 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1 A

• Shell Finish:

  NICKEL

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.112 inch

• Terminal Pitch:

  2.4892 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  4
