USB2514B/M2 - Microchip

Description: MICROCHIP - USB2514B/M2 - USB HUB CONTROLLER, USB2.0, SQFN-36

Download USB2514B/M2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

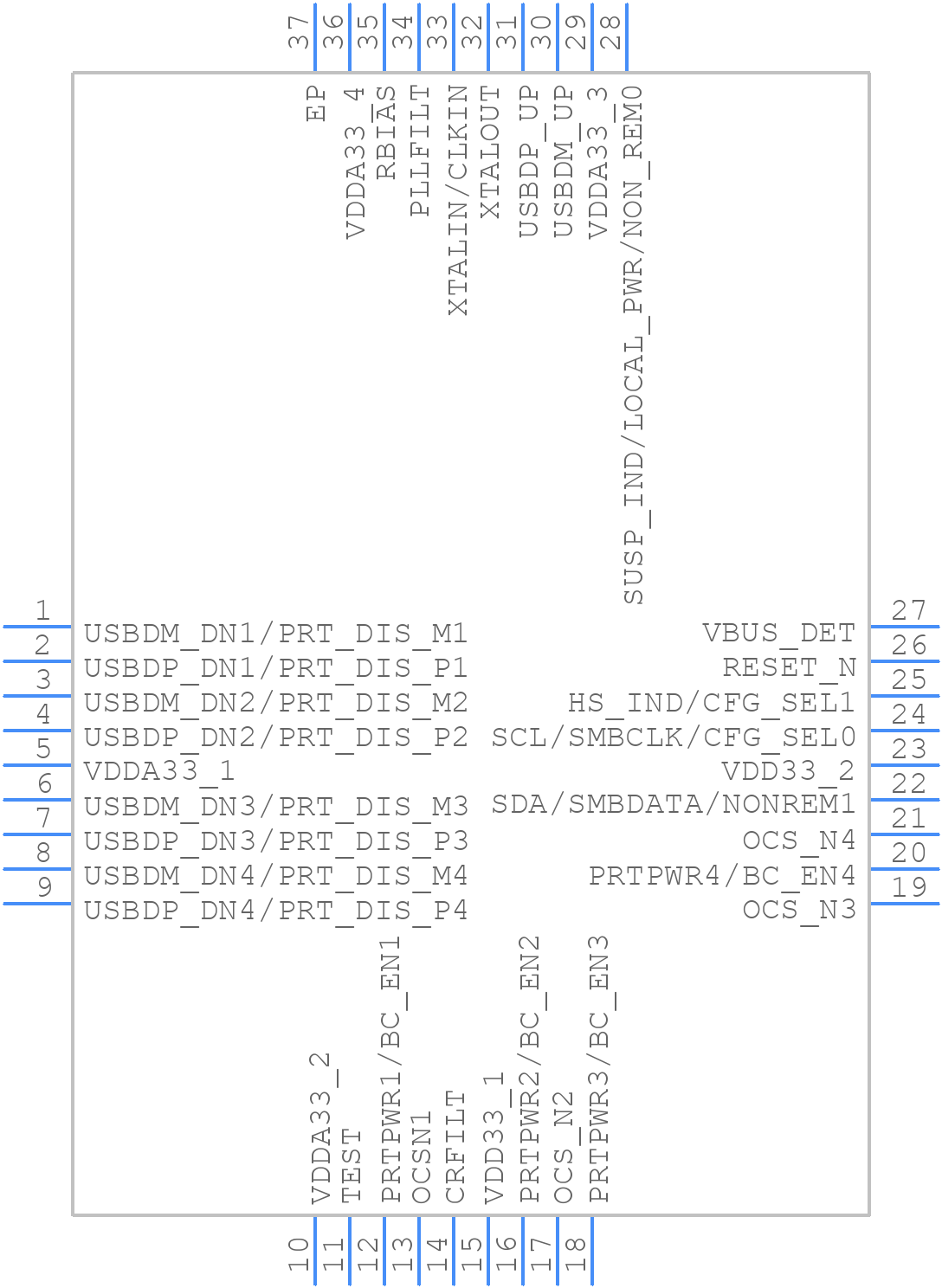

USB2514B/M2 - Microchip - PCB symbol
click to zoom
PCB Footprints
USB2514B/M2 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-PIN SQFN
click to zoom
3D Models
USB2514B/M2 - Microchip - 3D model - Quad Flat No-Lead - 36-PIN SQFN
click to zoom

USB2514B/M2 Details

  • Manufacturer Part Number:

    USB2514B/M2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    36

  • Manufacturer Package Code:

    SQFN-36

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    13

  • Bus Compatibility:

    I2C, SMBUS, USB

  • Clock Frequency-Max:

    24 MHz

  • JESD-30 Code:

    S-XQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
