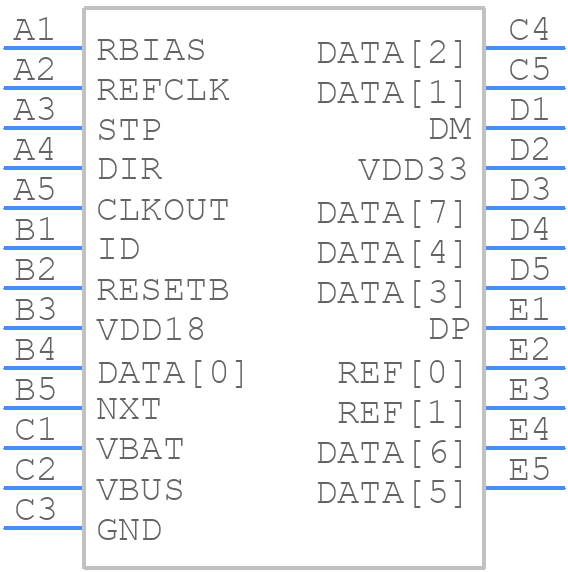

USB3330E-GL-TR - Microchip

USB3330E-GL-TR Details

• Manufacturer Part Number:

  USB3330E-GL-TR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  WLCSP-25

• Pin Count:

  25

• Manufacturer Package Code:

  WLCSP-25

• Country Of Origin:

  South Korea

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  0

• Bus Compatibility:

  UART

• Clock Frequency-Max:

  26 MHz

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PBGA-B25

• JESD-609 Code:

  e1

• Length:

  1.97 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  25

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA25,5X5,16

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  0.62 mm

• Supply Current-Max:

  40 mA

• Supply Voltage-Max:

  2 V

• Supply Voltage-Min:

  1.6 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Width:

  1.97 mm

• uPs/uCs/Peripheral ICs Type:

  BUS CONTROLLER, UNIVERSAL SERIAL BUS
