USBN9603-28M/NOPB - Texas Instruments

Description: USBN9603-28M/NOPB

Download USBN9603-28M/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

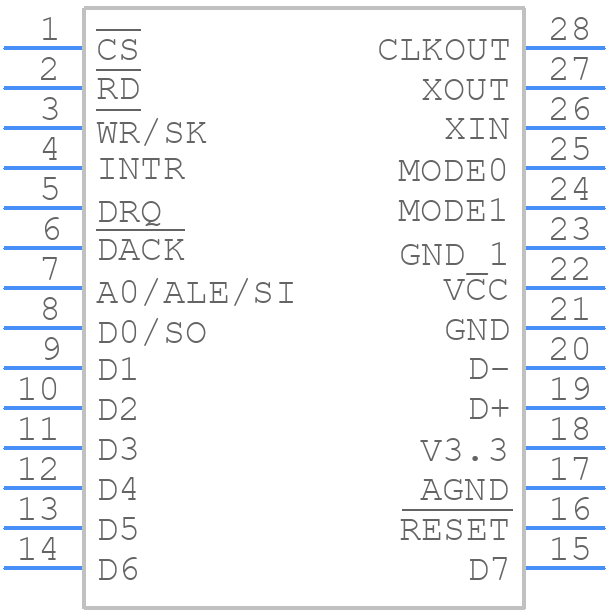

USBN9603-28M/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
USBN9603-28M/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 28-Pin Plastic SOIC
click to zoom
3D Models
USBN9603-28M/NOPB - Texas Instruments - 3D model - Small Outline Packages - 28-Pin Plastic SOIC
click to zoom

USBN9603-28M/NOPB Details

  • Manufacturer Part Number:

    USBN9603-28M/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SO-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    8

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USBN9603-28M/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter and a shielded cable to reduce EMI.
  • Use a high-quality, shielded cable with a twisted pair for data transmission. Keep the cable length as short as possible and use repeaters or hubs if necessary. Implement error correction and retransmission mechanisms in your firmware.
  • The device has a maximum junction temperature of 150°C. Ensure good airflow around the device and use a heat sink if necessary. Avoid overheating by keeping the device within the recommended operating temperature range.
  • Use a voltage regulator to ensure a stable 3.3V supply to the device. Implement power-saving modes and suspend/resume functionality to reduce power consumption. Use a power switch or a low-dropout regulator to minimize voltage drops.
  • The device has built-in ESD protection. However, it's recommended to add external ESD protection devices and follow proper PCB design guidelines to prevent latch-up. Use a TVS diode or a transient voltage suppressor to protect against voltage spikes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USBN9603-28M/NOPB Overview

Use the download button to access the USBN9603-28M/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USBN9, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
