USX2064-AEZG-TR - Microchip

Description: USB 2.0 Hi-Speed 4-Port Hub Controller 36-Pin VQFN T/R

Download USX2064-AEZG-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

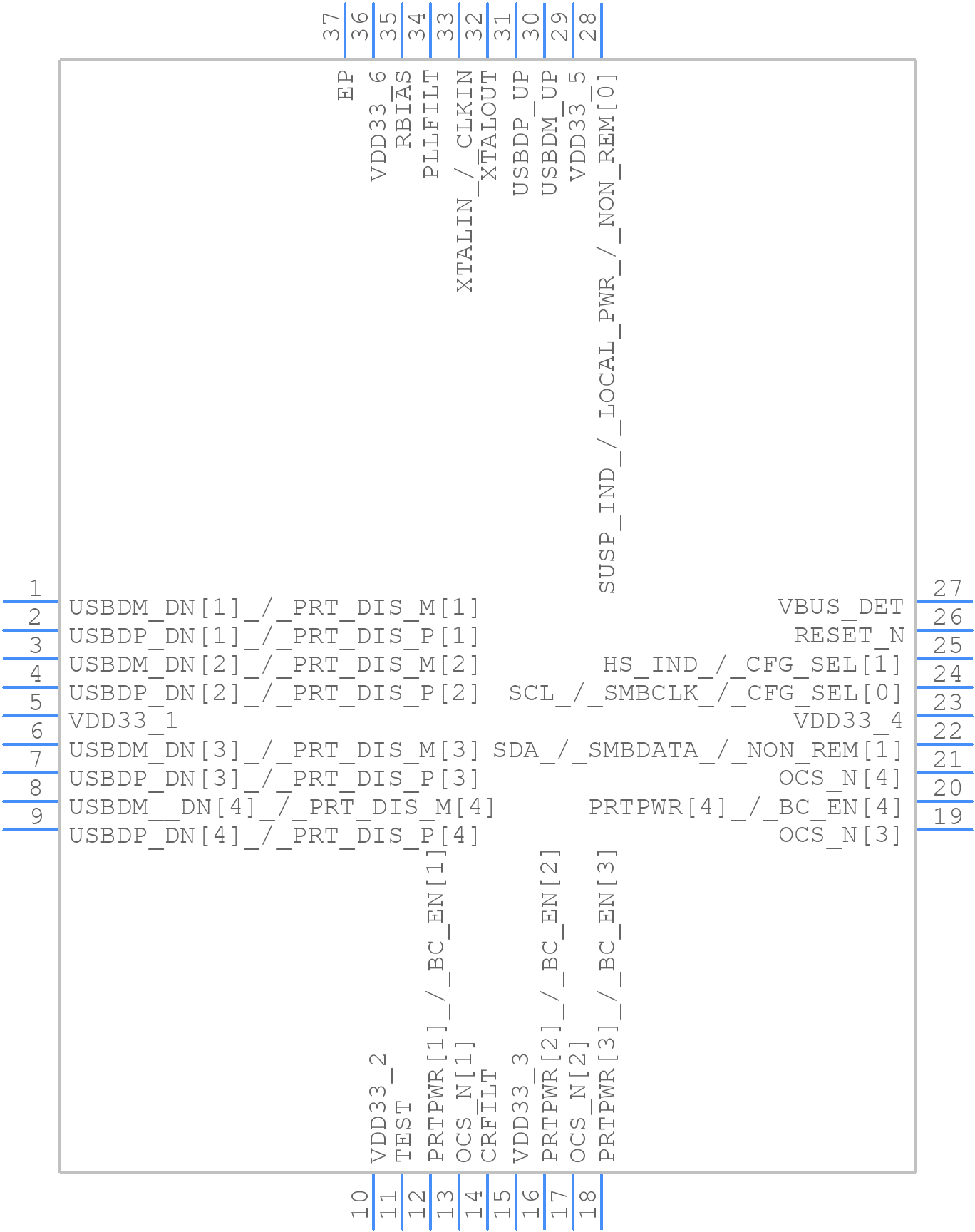

USX2064-AEZG-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USX2064-AEZG-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-Pin QFN, 6x6 mm Body, 0.5 mm Pitch
click to zoom
3D Models
USX2064-AEZG-TR - Microchip - 3D model - Quad Flat No-Lead - 36-Pin QFN, 6x6 mm Body, 0.5 mm Pitch
click to zoom

USX2064-AEZG-TR Details

  • Manufacturer Part Number:

    USX2064-AEZG-TR

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    VQFN-36

  • Country Of Origin:

    Mainland China, Singapore, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Bus Compatibility:

    I2C; USB

  • Clock Frequency-Max:

    24 MHz

  • Data Transfer Rate-Max:

    0.0125 MBps

  • JESD-30 Code:

    S-PQCC-N36

  • Length:

    6 mm

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    305 mA

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USX2064-AEZG-TR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a reliable communication protocol like SPI or I2C, and ensure proper signal termination and routing. Also, consider using a buffer or repeater if the distance between the USX2064 and the microcontroller is significant.
  • The USX2064 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating in a high-temperature environment.
  • Ensure that the power supply to the USX2064 is stable and well-regulated. Use a power-on reset circuit to ensure the device is properly reset during power-up. Also, consider using a voltage supervisor to monitor the power supply voltage.
  • The USX2064 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USX2064-AEZG-TR Overview

Use the download button to access the USX2064-AEZG-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USX20, or try a keyword search, such as Bus Controllers
