UT6K30TCR - ROHM Semiconductor

Description: UT6K30TCR Dual N-Channel MOSFET, 3 A, 60 V UT6K30, 8-Pin DFN2020, HUML2020L ROHM

Download UT6K30TCR Model

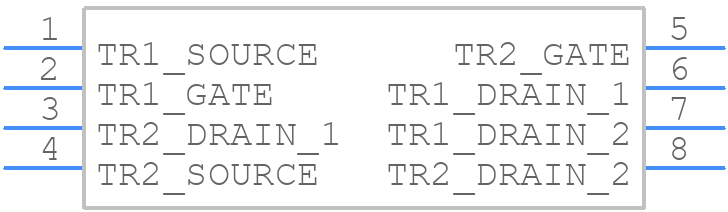

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UT6K30TCR - ROHM Semiconductor PCB footprint - Other - Other - UT6K30TCR-4
click to zoom
3D Models
UT6K30TCR - ROHM Semiconductor  - 3D model - Other - UT6K30TCR-4
click to zoom

UT6K30TCR Details

  • Manufacturer Part Number:

    UT6K30TCR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DFN2020-8D, 6 PIN

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-12-20

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    1.3 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    3 A

  • Drain-source On Resistance-Max:

    0.223 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

UT6K30TCR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for UT6K30TCR is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger ceramic capacitor for the output capacitor (Cout) and a 1uF or larger ceramic capacitor for the input capacitor (Cin).
  • The maximum output current that UT6K30TCR can provide is 3A.
  • The inductor value should be chosen based on the output voltage, output current, and switching frequency. A general guideline is to use an inductor with a value between 1uH to 10uH.
  • The thermal shutdown temperature for UT6K30TCR is 150°C.
