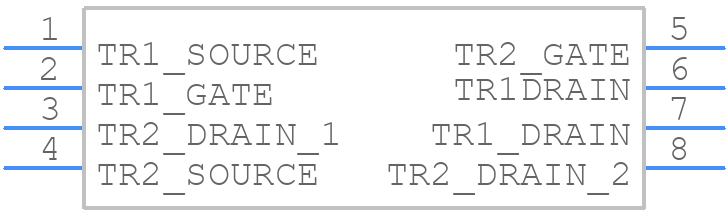

UT6MA3TCR - ROHM Semiconductor

UT6MA3TCR Details

• Manufacturer Part Number:

  UT6MA3TCR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DFN2020-8D, 6 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  5.4

• Avalanche Energy Rating (Eas):

  2 mJ

• Case Connection:

  DRAIN

• Configuration:

  SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  20 V

• Drain Current-Max (ID):

  5.5 A

• Drain-source On Resistance-Max:

  0.042 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JESD-30 Code:

  S-PDSO-N6

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  6

• Operating Mode:

  ENHANCEMENT MODE

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL AND P-CHANNEL

• Pulsed Drain Current-Max (IDM):

  12 A

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  10

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
