The recommended soldering temperature is 250°C to 260°C, and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow the recommended reflow soldering profile.
Yes, the UUJ2G100MNQ1MS capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries and other regions that adopt these regulations.
The ESR of the UUJ2G100MNQ1MS capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10 mohm to 20 mohm at 100 kHz, based on similar capacitors from Nichicon Corporation. However, it's recommended to consult the manufacturer or a reliable source for the exact ESR value.
The UUJ2G100MNQ1MS capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. If your application requires high reliability in harsh environments, it's recommended to consult the manufacturer or consider using capacitors specifically designed for high-reliability applications.
The MSL of the UUJ2G100MNQ1MS capacitor is MSL 2, which means it can be exposed to a maximum of 30°C and 60% relative humidity for 72 hours before soldering. It's recommended to follow the manufacturer's storage and handling guidelines to prevent moisture absorption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UUJ2G100MNQ1MS Overview

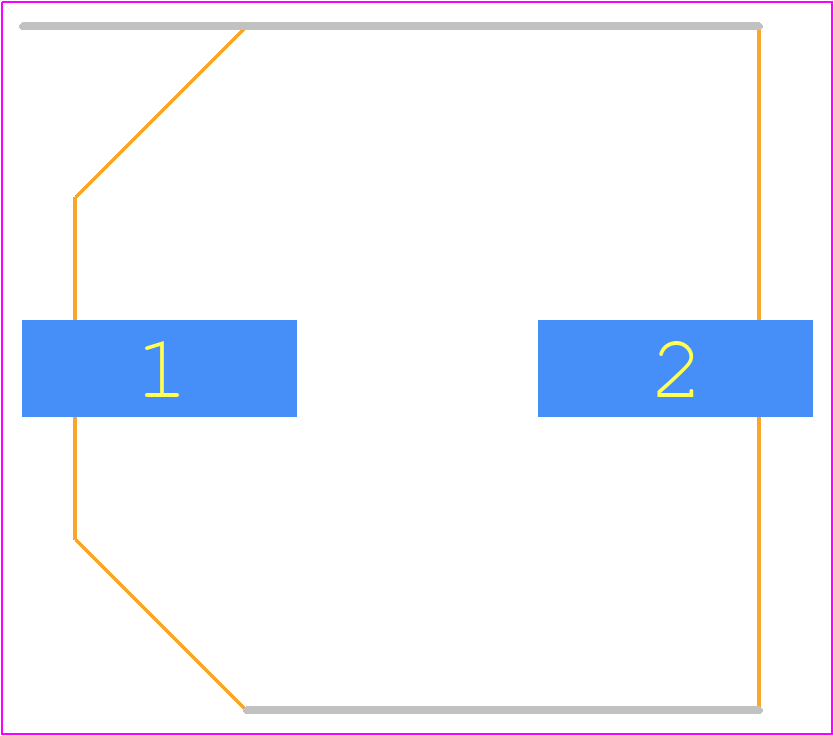

Use the download button to access the UUJ2G100MNQ1MS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UUJ2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
