UUJ2W100MNQ1MS - Nichicon

Description: Nichicon 10µF 450V dc Aluminium Electrolytic Capacitor, Surface Mount 16 (Dia.) x 16.5mm +105°C 16mm 6.3mm

Download UUJ2W100MNQ1MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UUJ2W100MNQ1MS - Nichicon - PCB symbol
click to zoom
PCB Footprints

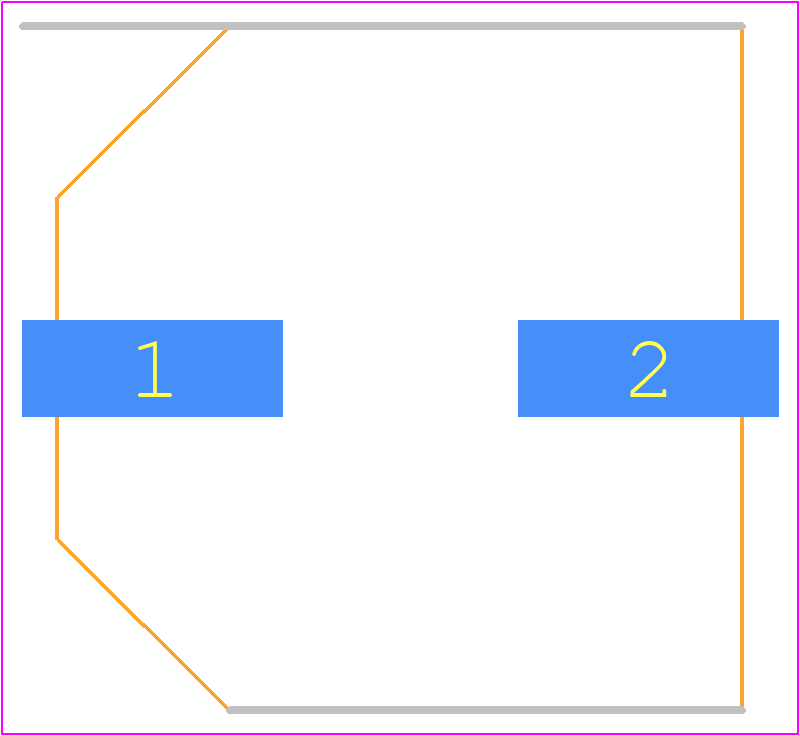

UUJ2W100MNQ1MS - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 16*16.5_1
click to zoom
3D Models
UUJ2W100MNQ1MS - Nichicon - 3D model - Capacitor Al Electrolytic - 16*16.5_1
click to zoom

UUJ2W100MNQ1MS Details

  • Manufacturer Part Number:

    UUJ2W100MNQ1MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0.47

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    16.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.28 mA

  • Length:

    17.1 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    85 mA

  • Size Code:

    6767

  • Surface Mount:

    YES

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    17.1 mm

UUJ2W100MNQ1MS Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the UUJ2W100MNQ1MS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, but it's recommended to consult with Nichicon Corporation for specific vibration requirements.
  • The UUJ2W100MNQ1MS is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency, making it suitable for high-frequency applications.
  • Yes, the UUJ2W100MNQ1MS capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The shelf life of the UUJ2W100MNQ1MS capacitor is 2 years from the date of manufacture, but it's recommended to store them in a cool, dry place to maintain their performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UUJ2W100MNQ1MS Overview

Use the download button to access the UUJ2W100MNQ1MS schematic symbol, PCB footprint, and 3D model.
