UV5TZ-390-30 footprint, schematic symbol and 3D model by Bivar

Symbol

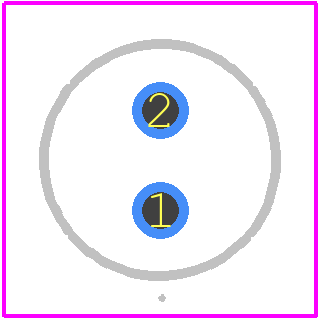

PCB Footprints

3D Models

UV5TZ-390-30 Details

The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
Yes, the UV5TZ-390-30 is compatible with lead-free soldering processes. Bivar Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The typical power rating for the UV5TZ-390-30 is 0.5W. However, it's essential to check the specific application and operating conditions to ensure the component is not overstressed.
The UV5TZ-390-30 has an operating temperature range of -40°C to 100°C. While it can tolerate high temperatures, it's not recommended for extreme high-temperature applications. For such applications, consider using a component with a higher temperature rating.
The UV5TZ-390-30 has a moisture sensitivity level (MSL) of 3, which means it can withstand moderate humidity levels. However, it's essential to follow proper storage and handling procedures to prevent moisture-related damage.
