UVR1H103MRD - Nichicon

Description: Aluminum Electrolytic Capacitors - Leaded 50volts 10000uF 25x50 20% 12.5LS

Download UVR1H103MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVR1H103MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

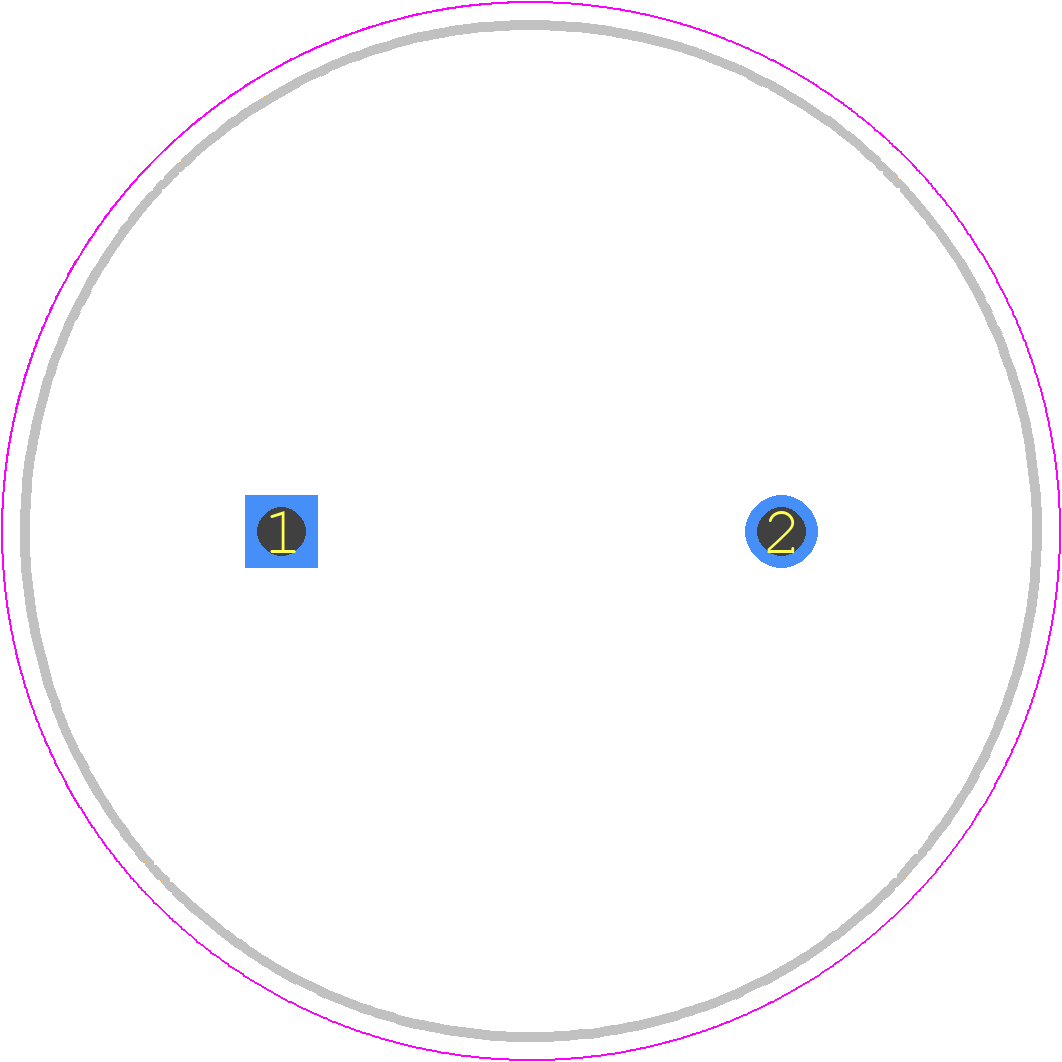

UVR1H103MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGG (25 x 50)
click to zoom
3D Models
UVR1H103MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGG (25 x 50)
click to zoom

UVR1H103MRD Details

  • Manufacturer Part Number:

    UVR1H103MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    15 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    4000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    12.5 mm

  • Terminal Shape:

    WIRE

UVR1H103MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the UVR1H103MRD is 260°C for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the UVR1H103MRD is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
  • The UVR1H103MRD is rated for operation up to 125°C, making it suitable for use in high-temperature environments. However, the capacitor's performance may degrade at temperatures above 105°C.
  • Yes, the UVR1H103MRD is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • The recommended storage condition for the UVR1H103MRD is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -20°C and 40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UVR1H103MRD Overview

Use the download button to access the UVR1H103MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UVR1H, or try a keyword search, such as Aluminum Electrolytic Capacitors
