UVZ1E223MRD - Nichicon

Description: Nichicon 22000μF 25 V Aluminium Electrolytic Capacitor, VZ Series 1000h 25 (Dia.) x 50mm

Download UVZ1E223MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVZ1E223MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

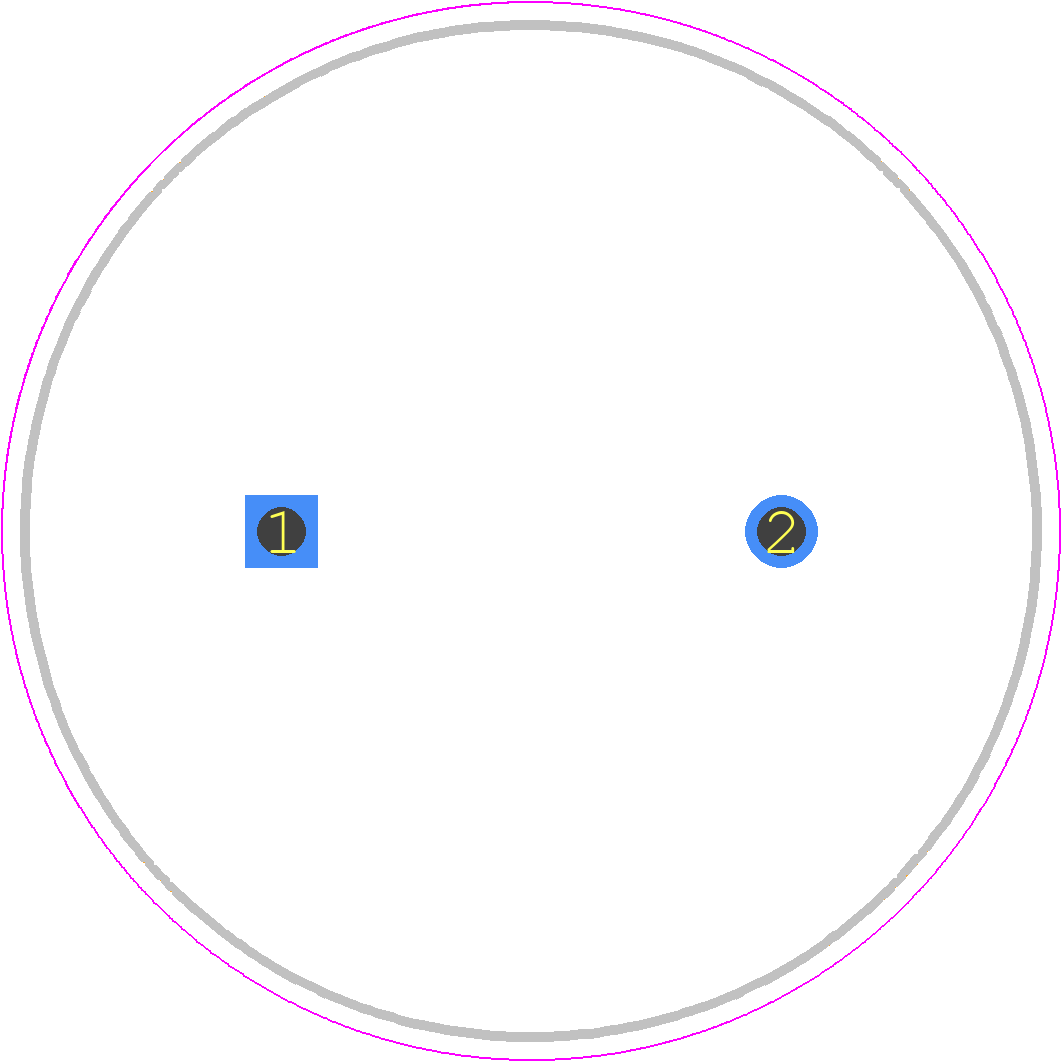

UVZ1E223MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25x50
click to zoom
3D Models
UVZ1E223MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25x50
click to zoom

UVZ1E223MRD Details

  • Manufacturer Part Number:

    UVZ1E223MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    22000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    16.5 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    3250 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.6

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    12.5 mm

  • Terminal Shape:

    WIRE

UVZ1E223MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for UVZ1E223MRD is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, UVZ1E223MRD is suitable for high-frequency applications up to 100 kHz due to its low equivalent series resistance (ESR) and high resonance frequency.
  • UVZ1E223MRD has a high temperature rating of 125°C, making it suitable for use in high-temperature environments. However, its capacitance and ESR may vary with temperature, so derating may be necessary.
  • Yes, UVZ1E223MRD meets the requirements for automotive applications, including AEC-Q200 qualification, and is suitable for use in automotive systems.
  • Yes, UVZ1E223MRD can be used in parallel with other capacitors to increase the overall capacitance, but care must be taken to ensure that the capacitors are properly matched and that the overall ESR is not compromised.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UVZ1E223MRD Overview

Use the download button to access the UVZ1E223MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UVZ1E, or try a keyword search, such as Aluminum Electrolytic Capacitors
