UVZ1J472MRD - Nichicon

Description: Cap Aluminum Lytic 4700uF 63V 20% (22 X 50mm) Radial 10mm 2450mA 1000h 105°C Bulk

Download UVZ1J472MRD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UVZ1J472MRD - Nichicon - PCB symbol
click to zoom
PCB Footprints

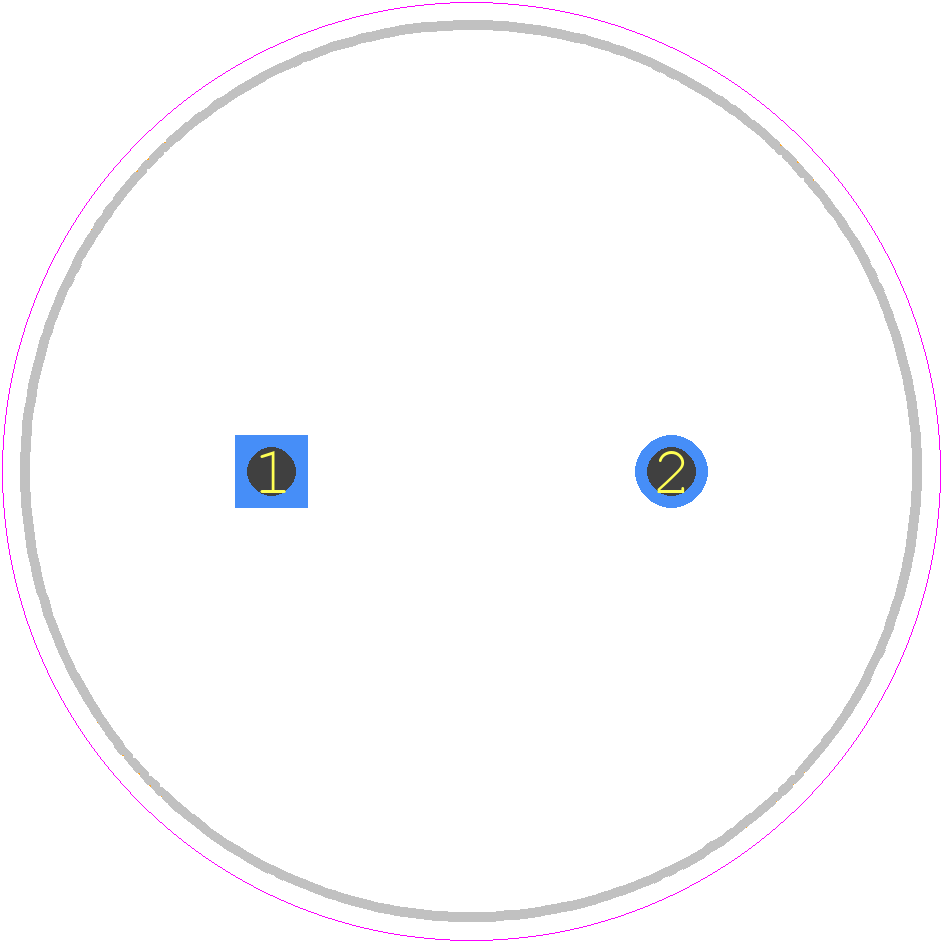

UVZ1J472MRD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*50
click to zoom
3D Models
UVZ1J472MRD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22*50
click to zoom

UVZ1J472MRD Details

  • Manufacturer Part Number:

    UVZ1J472MRD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    0

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    8.883 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    2450 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.18

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

UVZ1J472MRD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the UVZ1J472MRD is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the UVZ1J472MRD capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the UVZ1J472MRD capacitor is typically provided by Nichicon Corporation upon request. It shows the recommended voltage derating based on temperature to ensure reliable operation.
  • While the UVZ1J472MRD is a general-purpose capacitor, it may not be suitable for high-frequency applications due to its equivalent series resistance (ESR) and inductance. For high-frequency applications, a capacitor with lower ESR and inductance may be more suitable.
  • The shelf life of the UVZ1J472MRD capacitor is typically 2 years from the date of manufacture, as long as it is stored in a dry, cool place, away from direct sunlight and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UVZ1J472MRD Overview

Use the download button to access the UVZ1J472MRD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UVZ1J, or try a keyword search, such as Aluminum Electrolytic Capacitors
