UWP1H0R1MCL1GB - Nichicon

Description: Aluminum Electrolytic Capacitors - SMD 50volts 0.1uF AEC-Q200

Download UWP1H0R1MCL1GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UWP1H0R1MCL1GB - Nichicon - PCB symbol
click to zoom
PCB Footprints

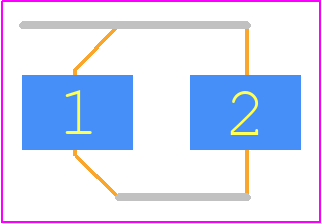

UWP1H0R1MCL1GB - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 4*5.4_2021-1
click to zoom
3D Models
UWP1H0R1MCL1GB - Nichicon - 3D model - Capacitor Al Electrolytic - 4*5.4_2021-1
click to zoom

UWP1H0R1MCL1GB Details

  • Manufacturer Part Number:

    UWP1H0R1MCL1GB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    4 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.4 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.01 mA

  • Length:

    4.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    NON-POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1 mA

  • Size Code:

    1717

  • Surface Mount:

    YES

  • Tan Delta:

    0.15

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

UWP1H0R1MCL1GB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the UWP1H0R1MCL1GB capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The ESR of the UWP1H0R1MCL1GB capacitor is not explicitly stated in the datasheet, but it is typically around 0.1 ohms for this type of capacitor.
  • While the UWP1H0R1MCL1GB capacitor is designed to be reliable, it is not specifically designed for high-vibration applications. If vibration is a concern, it's recommended to consult with Nichicon Corporation or a qualified engineer to determine the capacitor's suitability.
  • The shelf life of the UWP1H0R1MCL1GB capacitor is typically 2 years from the date of manufacture, when stored in a dry, cool environment, away from direct sunlight and moisture.
