UWP1H4R7MCL1GB - Nichicon

Description: Aluminum Electrolytic Capacitors - SMD 50volts 4.7uF AEC-Q200

Download UWP1H4R7MCL1GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UWP1H4R7MCL1GB - Nichicon - PCB symbol
click to zoom
PCB Footprints

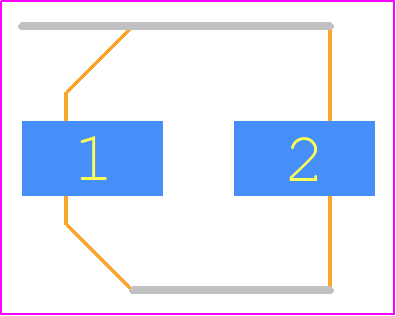

UWP1H4R7MCL1GB - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3*5.4
click to zoom
3D Models
UWP1H4R7MCL1GB - Nichicon - 3D model - Capacitor Al Electrolytic - 6.3*5.4
click to zoom

UWP1H4R7MCL1GB Details

  • Manufacturer Part Number:

    UWP1H4R7MCL1GB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.4 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.01175 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    NON-POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    20 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.15

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

UWP1H4R7MCL1GB Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the UWP1H4R7MCL1GB is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, it's essential to consider the ESR when designing the circuit to ensure optimal performance.
  • The UWP1H4R7MCL1GB has a rated operating temperature range of -55°C to 125°C, making it suitable for high-temperature applications. However, it's crucial to consider the capacitor's temperature coefficient and derating factors when designing for extreme temperatures.
  • Nichicon recommends using a reflow soldering process with a peak temperature of 260°C or less to ensure reliable mounting and prevent damage to the capacitor.
  • The capacitance of the UWP1H4R7MCL1GB decreases with increasing frequency due to the capacitor's internal impedance. It's essential to consider this characteristic when designing the circuit, especially in high-frequency applications.
