V1000LA160BPX1347 - LITTELFUSE

Description: Varistors RADIAL VARISTOR 20MM ROHS/LEAD FREE

Download V1000LA160BPX1347 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V1000LA160BPX1347 - LITTELFUSE - PCB symbol
click to zoom

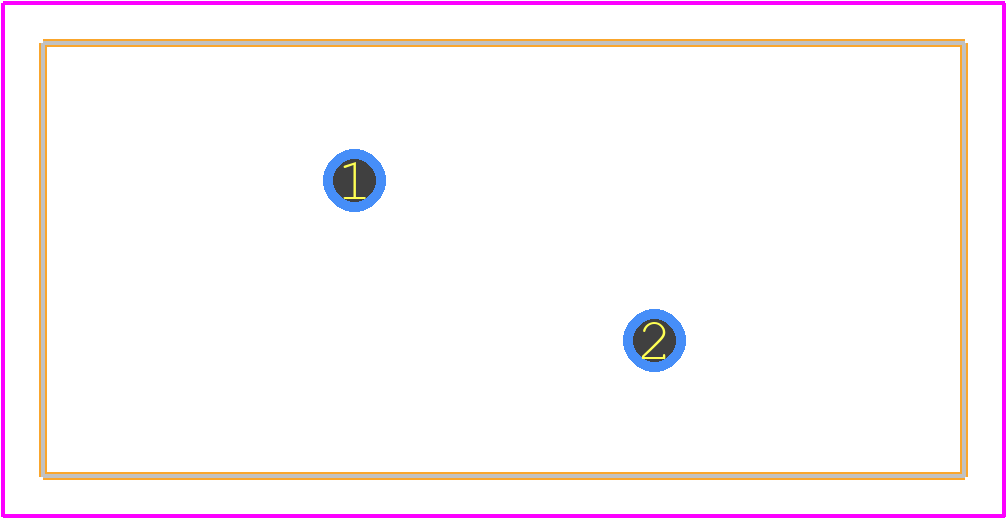

PCB Footprints
V1000LA160BPX1347 - LITTELFUSE PCB footprint - Other - Other - V1000LA160BPX1347-4
click to zoom
3D Models
V1000LA160BPX1347 - LITTELFUSE - 3D model - Other - V1000LA160BPX1347-4
click to zoom

V1000LA160BPX1347 Details

  • Manufacturer Part Number:

    V1000LA160BPX1347

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.75

  • Additional Feature:

    STANDARD: IEC61051-1; IEC61051-2; IEC60950-1

  • Circuit RMS Voltage-Max:

    1000 V

  • Energy Absorbing Capacity-Max:

    360 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    26.5 mm

  • Package Length:

    23 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    10.8 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    85 °C

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Thermistor Application:

    TEMPERATURE COMPENSATION

  • Working Voltage:

    1200 V

V1000LA160BPX1347 Frequently Asked Questions (FAQs)

  • Littelfuse recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 150°C.
  • Consider factors such as voltage, current, power, and fault current ratings, as well as the application's operating environment and safety requirements. Consult Littelfuse's selection guide and application notes for guidance.
  • The V1000LA160BPX1347 has a typical lifespan of 10-15 years, with a failure rate of <1% per 1,000 hours of operation. However, this may vary depending on the application, operating conditions, and environmental factors.
  • Yes, the V1000LA160BPX1347 is designed to withstand high-vibration and high-shock environments, but it's essential to follow Littelfuse's guidelines for mounting and securing the device to ensure reliable operation.
  • Consult Littelfuse's troubleshooting guide and application notes for common issues and diagnostic procedures. Also, consider using a fuse monitoring circuit to detect and respond to fuse failures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V1000LA160BPX1347 Overview

Use the download button to access the V1000LA160BPX1347 schematic symbol, PCB footprint, and 3D model.
