V10D170C-M3/I footprint, schematic symbol and 3D model by Vishay

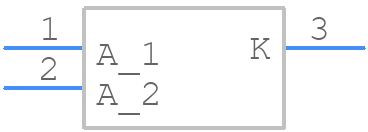

Symbol

click to zoom

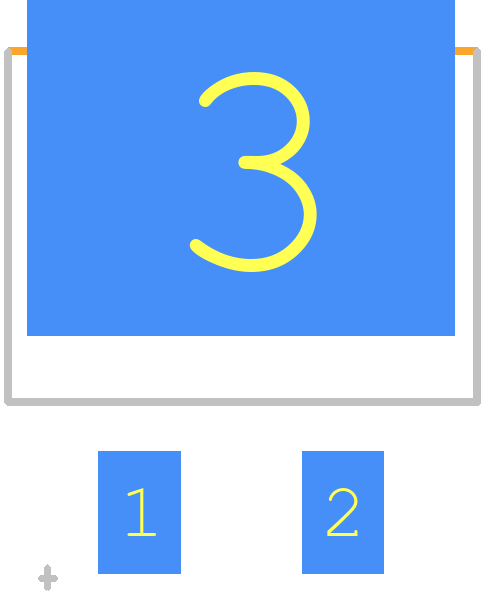

PCB Footprints

V10D170C-M3/I - Vishay PCB footprint - Other - Other - TO-263AC(SMPD)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for V10D170C-M3/I
Part Number V10D170C-M3/I
Manufacturer Vishay
Pin Count 3
Part Category Bridge Rectifier
Package Category Other
Footprint Name Other - TO-263AC(SMPD)
Released Date Oct 22, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

V10D170C-M3/I Details

Manufacturer Part Number:
V10D170C-M3/I
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8541.10.00.80
Factory Lead Time:
40 Weeks
Date Of Intro:
2019-02-19
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.22
Additional Feature:
FREE WHEELING DIODE , LOW POWER LOSS
Application:
EFFICIENCY
Case Connection:
CATHODE
Configuration:
COMMON CATHODE, 2 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
RECTIFIER DIODE
Forward Voltage-Max (VF):
0.9 V
JEDEC-95 Code:
TO-263AC
JESD-30 Code:
R-PSSO-G2
Non-rep Pk Forward Current-Max:
100 A
Number of Elements:
2
Number of Phases:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
5 A
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR, PLASTIC, 13 INCH
Rep Pk Reverse Voltage-Max:
170 V
Reverse Current-Max:
50 µA
Reverse Test Voltage:
170 V
Surface Mount:
YES
Technology:
SCHOTTKY
Terminal Form:
GULL WING
Terminal Position:
SINGLE

V10D170C-M3/I Frequently Asked Questions (FAQs)

The recommended PCB footprint for the V10D170C-M3/I is a rectangular pad with dimensions of 2.5 mm x 1.5 mm, with a 0.5 mm radius corner and a 0.3 mm solder mask clearance.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux with a moderate activity level. Avoid using excessive solder or flux, and ensure the component is properly aligned on the PCB.
The maximum allowed voltage derating for the V10D170C-M3/I is 10% of the rated voltage, which is 170 V. Therefore, the maximum allowed voltage derating is 17 V.
While the V10D170C-M3/I is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB design and layout considerations. However, it's essential to consult with a Vishay application engineer to ensure the component meets the specific requirements of your application.
Store the V10D170C-M3/I in its original packaging or a similar protective package to prevent mechanical damage and electrostatic discharge (ESD). Avoid exposing the component to extreme temperatures, humidity, or physical stress during shipping and storage.
