Part Image

V10P10HM3_A/I - Vishay

Description: Schottky Diodes & Rectifiers 10A, 100V, SMPC, TRENCH SKY RECT.

Download V10P10HM3_A/I Model

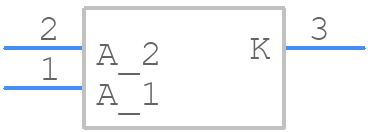

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

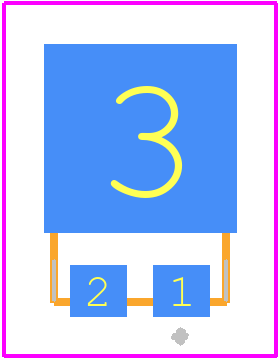

V10P10HM3_A/I - Vishay PCB footprint - Other - Other - SMPC (TO-277A)_ffw
click to zoom
3D Models
V10P10HM3_A/I - Vishay  - 3D model - Other - SMPC (TO-277A)_ffw
click to zoom

V10P10HM3_A/I Details

  • Manufacturer Part Number:

    V10P10HM3_A/I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    71 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • Risk Rank:

    6.89

  • YTEOL:

    6.43

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.68 V

  • JEDEC-95 Code:

    TO-277A

  • JESD-30 Code:

    R-PDSO-F3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    180 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    150 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
