V110C12C100BL - VICOR

Description: Isolated DC/DC Converters Micro Family - Vin - 110, Vout - 12, Power - 100, Product Grade - C

Download V110C12C100BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

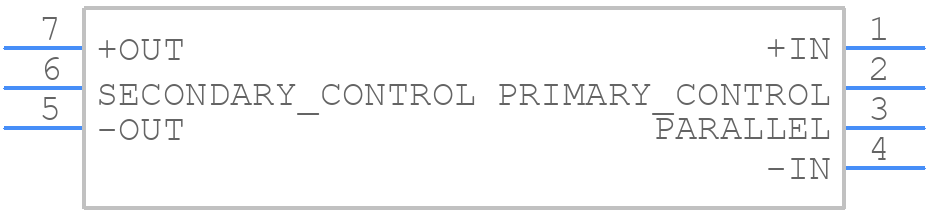

V110C12C100BL - VICOR - PCB symbol
click to zoom
PCB Footprints

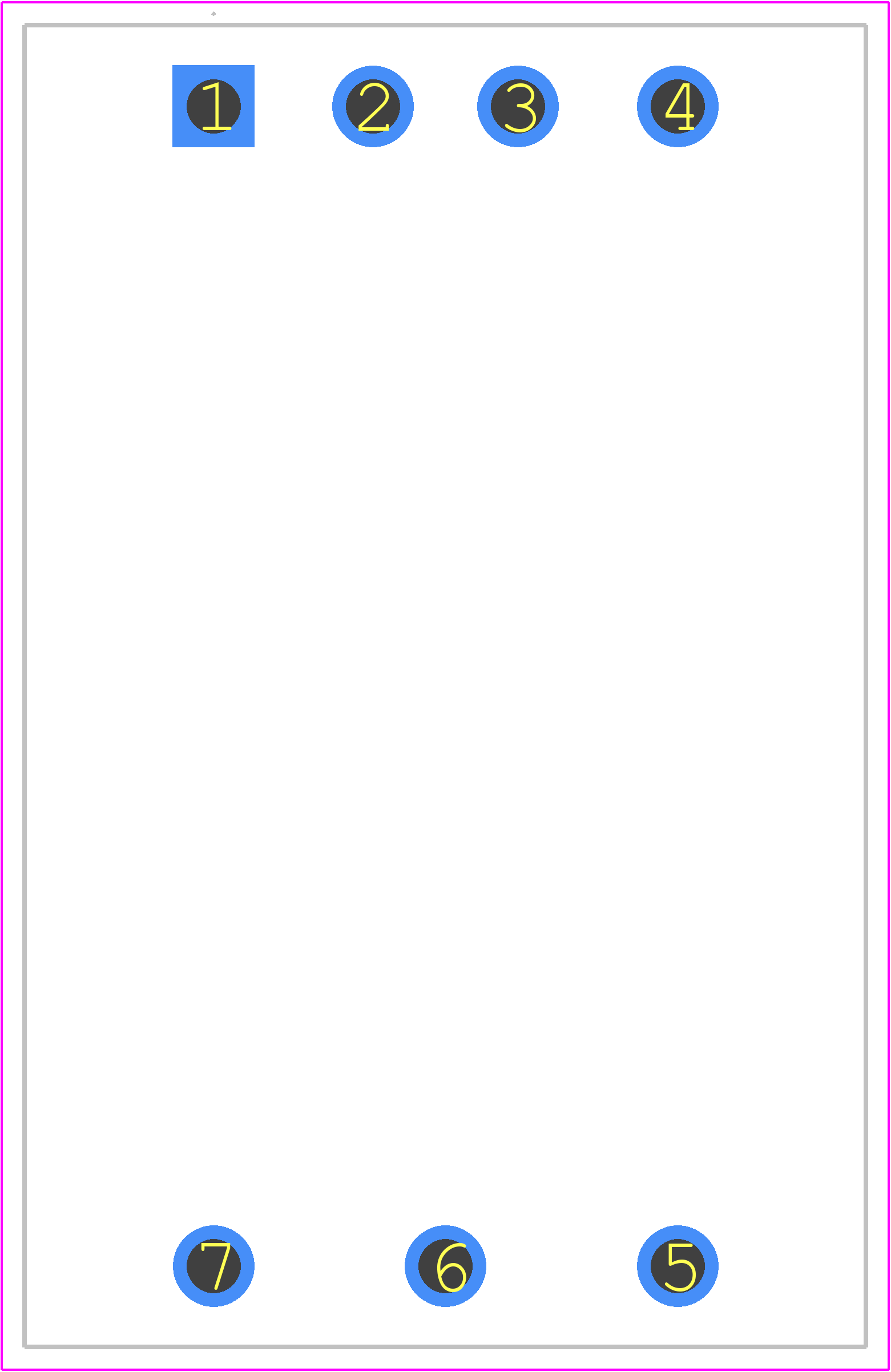

V110C12C100BL - VICOR PCB footprint - Other - Other - V110C12C100BL-1
click to zoom
3D Models
V110C12C100BL - VICOR - 3D model - Other - V110C12C100BL-1
click to zoom

V110C12C100BL Details

  • Manufacturer Part Number:

    V110C12C100BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.48

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    154 V

  • Input Voltage-Min:

    66 V

  • Input Voltage-Nom:

    110 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V110C12C100BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. The datasheet provides a recommended PCB layout and thermal management guidelines.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit and a controlled shutdown sequence. The application note AN-104 provides more details on start-up and shutdown considerations.
  • The V110C12C100BL is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. Vicor recommends following proper PCB layout and shielding techniques, as well as using EMI filters and common-mode chokes to minimize emissions.
  • Yes, the V110C12C100BL is available in a variety of screening options, including JANS, ESCC, and MIL-PRF-38534. Vicor also offers a range of high-reliability and military-grade products that meet specific industry standards.
  • The V110C12C100BL has an operating temperature range of -40°C to +100°C, with derating above 80°C. Vicor recommends following the thermal management guidelines to ensure reliable operation within the specified temperature range.
