Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage and ensure the converter is enabled only when the input voltage is within the specified range.
Operating the converter in high-temperature environments can reduce its reliability and lifespan. Vicor recommends derating the output power by 1% per degree Celsius above 40°C to ensure reliable operation. Additionally, the converter's thermal shutdown feature should be enabled to prevent damage from overheating.
Vicor recommends using a scope to monitor the input and output voltages, and the current sense pins to diagnose issues. Additionally, the converter's built-in fault monitoring pins can be used to detect and diagnose faults such as overvoltage, undervoltage, and overcurrent conditions.
Vicor recommends following proper EMI and EMC design practices, such as using a shielded enclosure, minimizing loop areas, and using EMI filters to reduce radiated emissions. Additionally, the converter's switching frequency can be synchronized to reduce EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V150B24C250BL Overview

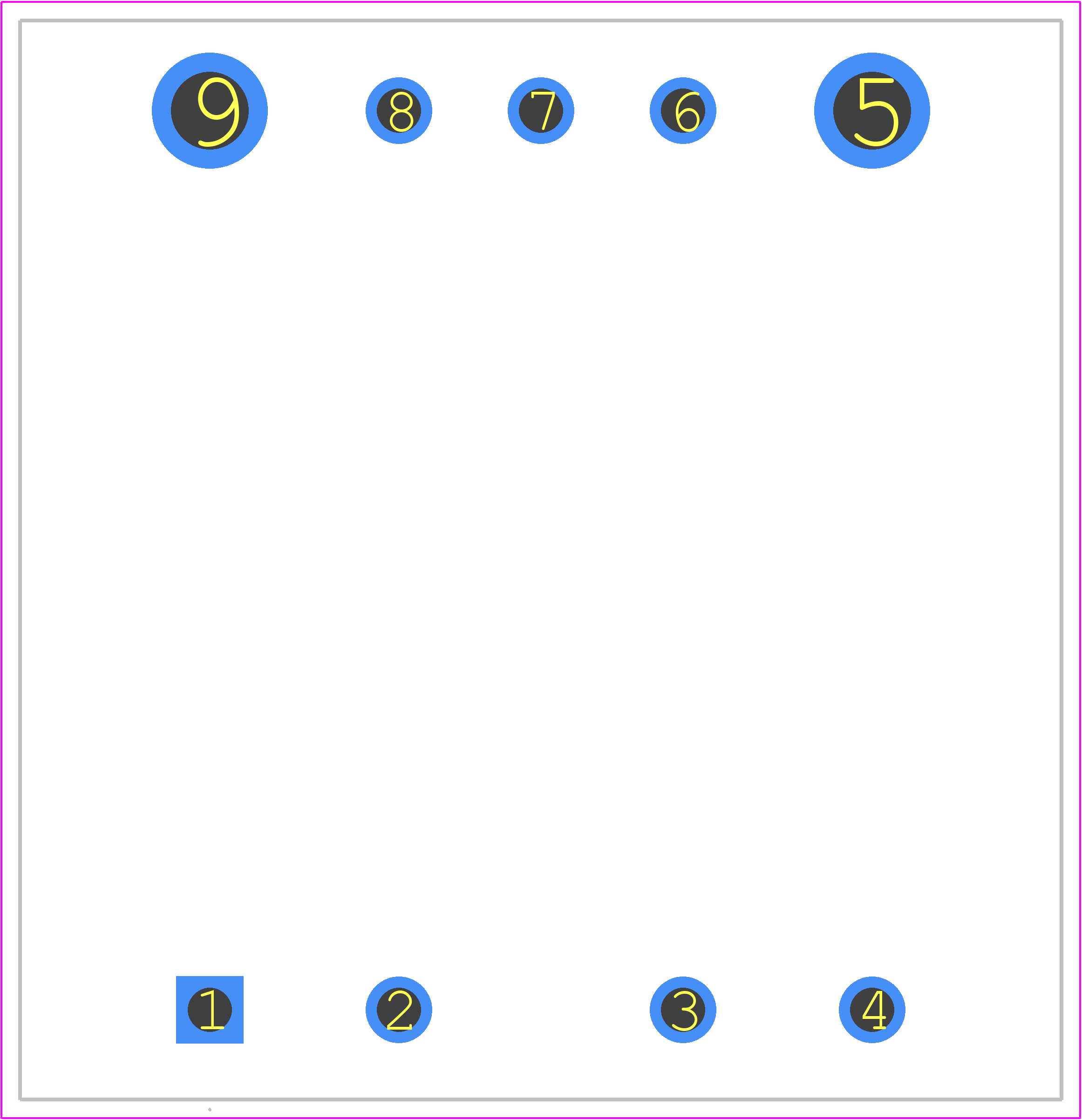

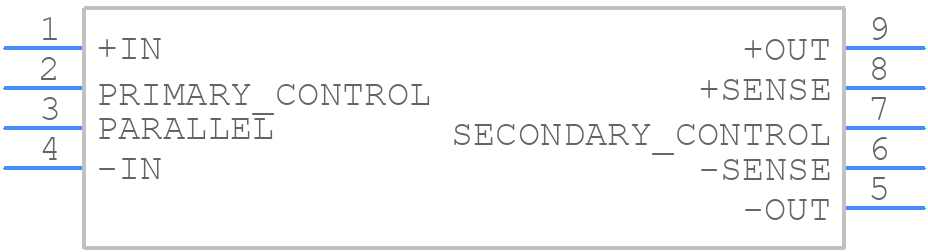

Use the download button to access the V150B24C250BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V150B,
or try a keyword search, such as Power Supply Modules
