V150C28C150BL - VICOR

Description: DC DC CONVERTER 28V 150W

Download V150C28C150BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

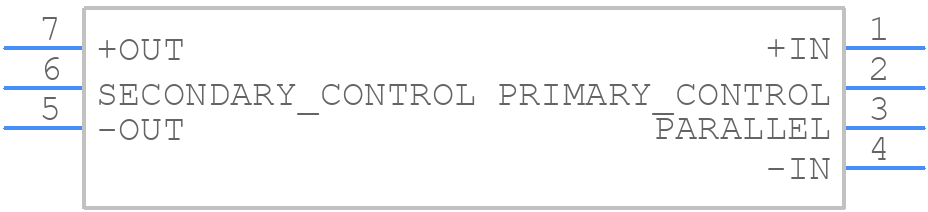

V150C28C150BL - VICOR - PCB symbol
click to zoom
PCB Footprints

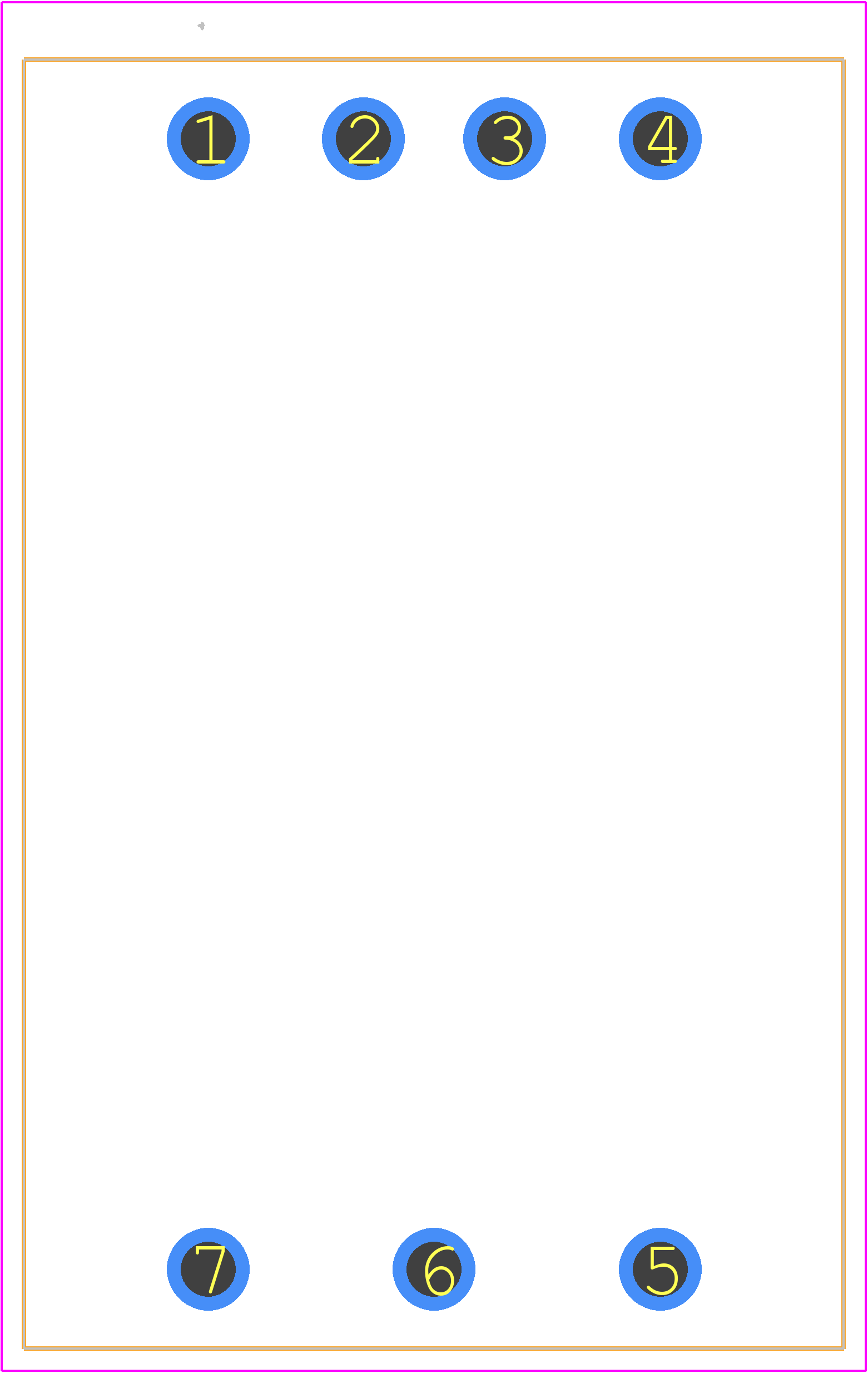

V150C28C150BL - VICOR PCB footprint - Other - Other - V150C28C150BL-2
click to zoom
3D Models
V150C28C150BL - VICOR - 3D model - Other - V150C28C150BL-2
click to zoom

V150C28C150BL Details

  • Manufacturer Part Number:

    V150C28C150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    MODULE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    200 V

  • Input Voltage-Min:

    100 V

  • Input Voltage-Nom:

    150 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    2.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V150C28C150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. Proper thermal management is crucial to ensure the module's reliability and performance.
  • Vicor recommends using capacitors with a voltage rating of at least 1.5 times the input voltage, and a capacitance value that meets the specified ripple current and ESR requirements. Consult the datasheet for specific capacitor requirements.
  • The V150C28C150BL can tolerate an input voltage deviation of ±10% from the nominal value. Exceeding this limit may affect the module's performance, reliability, or even cause damage.
  • Vicor recommends using an external overcurrent protection circuit, such as a fuse or a current sense resistor, to detect and respond to overcurrent conditions. The module's fault detection pin can be used to monitor for faults and initiate a shutdown or alarm signal if necessary.
  • Vicor recommends a soft-start sequence, where the input voltage is ramped up slowly (typically within 10-20 ms) to prevent inrush currents and ensure a reliable startup. Consult the datasheet for specific startup timing requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V150C28C150BL Overview

Use the download button to access the V150C28C150BL schematic symbol, PCB footprint, and 3D model.
