V23026E1106B201 - TE Connectivity

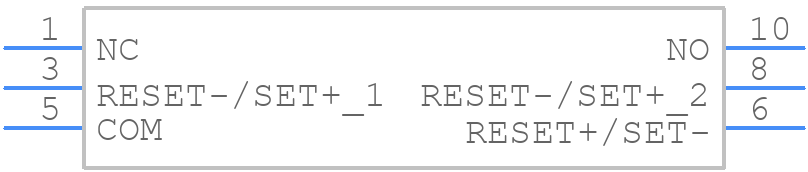

V23026E1106B201 Details

• Manufacturer Part Number:

  V23026E1106B201

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  RELEASE TIME WITH DIODE IN PARALLEL

• Body Breadth:

  7.8 mm

• Body Height:

  8 mm

• Body Length or Diameter:

  13.4 mm

• Coil Current(DC)-Max:

  0.023 A

• Coil Operate Voltage(DC):

  2.25 V

• Coil Power:

  69 mW

• Coil Release Voltage(DC):

  2.25 V

• Coil Resistance:

  130 Ω

• Coil Voltage(DC)-Max:

  3 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  1A@150VAC

• Contact Current(AC)-Max:

  1 A

• Contact Current(DC)-Max:

  1 A

• Contact (DC) Max Rating R Load:

  1A@125VDC

• Contact Voltage(AC)-Max:

  150 V

• Contact Voltage(DC)-Max:

  125 V

• Contact/Output Supply Type:

  AC/DC

• Dielectric Strength Between Coil and Contacts:

  1500 Vrms

• Dielectric Strength Between Open Contacts:

  500 Vrms

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  LEAD NICKEL

• Insertion Loss-Max:

  -0.12 dB

• Isolation-Max:

  -30 dB

• Mounting Feature:

  PANEL MOUNT

• Operate Time:

  5 ms

• Operating Frequency-Max:

  900 MHz

• Operating Frequency-Min:

  100 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  TR

• Physical Dimension:

  13.4mm x 7.75mm x 8mm

• Reference Standard:

  UL

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  RF RELAY

• Release Time:

  5 ms

• Sealing:

  IP67/RT3

• Surface Mount:

  NO

• Switching Time:

  2 ms

• Termination Type:

  SOLDER/QUICK CONNECT

• VSWR:

  1.75

• Weight:

  2 g
