V23100V4305B010 - TE Connectivity

Description: Signal Relays, 24 VDC Contact Voltage, 125 mW Coil Power (DC), Printed Circuit Board, PCB-THT, 5 VDC Coil Voltage, .7 A, Axicom Reed Relay V23100 -V4

Download V23100V4305B010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

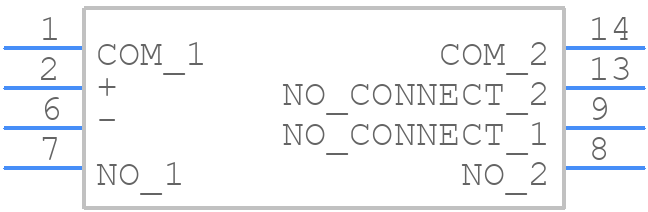

Symbol
V23100V4305B010 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
V23100V4305B010 - TE Connectivity PCB footprint - Other - Other - V23100V4305B010-2
click to zoom
3D Models
V23100V4305B010 - TE Connectivity - 3D model - Other - V23100V4305B010-2
click to zoom

V23100V4305B010 Details

  • Manufacturer Part Number:

    V23100V4305B010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    7 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    19.3 mm

  • Coil Current(DC)-Max:

    0.025 A

  • Coil Power:

    125 mW

  • Coil Resistance:

    200 Ω

  • Coil Voltage(AC)-Max:

    100 V

  • Coil Voltage(DC)-Max:

    100 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(AC)-Max:

    200 V

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    250 Vrms

  • End Contact Material:

    RUTHENIUM

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    19.3mm x 7.6mm x 7.5mm

  • Reference Standard:

    UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM A

  • Relay Function:

    DPST

  • Relay Type:

    DRY REED RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    1.8 g

V23100V4305B010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the V23100V4305B010 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
  • Yes, the V23100V4305B010 is designed for outdoor use and meets the IP67 rating for ingress protection. It can withstand exposure to dust, water, and other environmental factors, making it suitable for use in outdoor applications such as industrial, transportation, and renewable energy.
  • The maximum operating temperature for the V23100V4305B010 is 125°C (257°F). It's essential to ensure that the connector is used within the recommended temperature range to maintain its performance and reliability.
  • Yes, the V23100V4305B010 is compatible with aluminum wires. However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections and prevent damage to the connector or wire.
