A good PCB layout should ensure good thermal conductivity, minimal inductance, and low parasitic capacitance. A thermal management strategy should include a heat sink, thermal interface material, and a cooling system to keep the junction temperature below 125°C.
To ensure EMC, follow proper PCB design guidelines, use a metal enclosure, and add EMI filters or shielding if necessary. Also, ensure that the module is properly grounded and that all cables are properly shielded and routed.
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and even permanent damage to the module. It's essential to implement a reliable cooling system and monitor the temperature to prevent overheating.
While the module is designed to withstand some vibration, it's essential to ensure that the PCB is properly secured, and the module is mounted securely to prevent damage or malfunction. Additional vibration testing may be necessary to ensure reliability.
Start by consulting the datasheet and application notes. Check the power supply, input/output signals, and thermal management. Use oscilloscopes and logic analyzers to debug the issue. If the problem persists, contact Vincotech's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V23990-P540-A-PM Overview

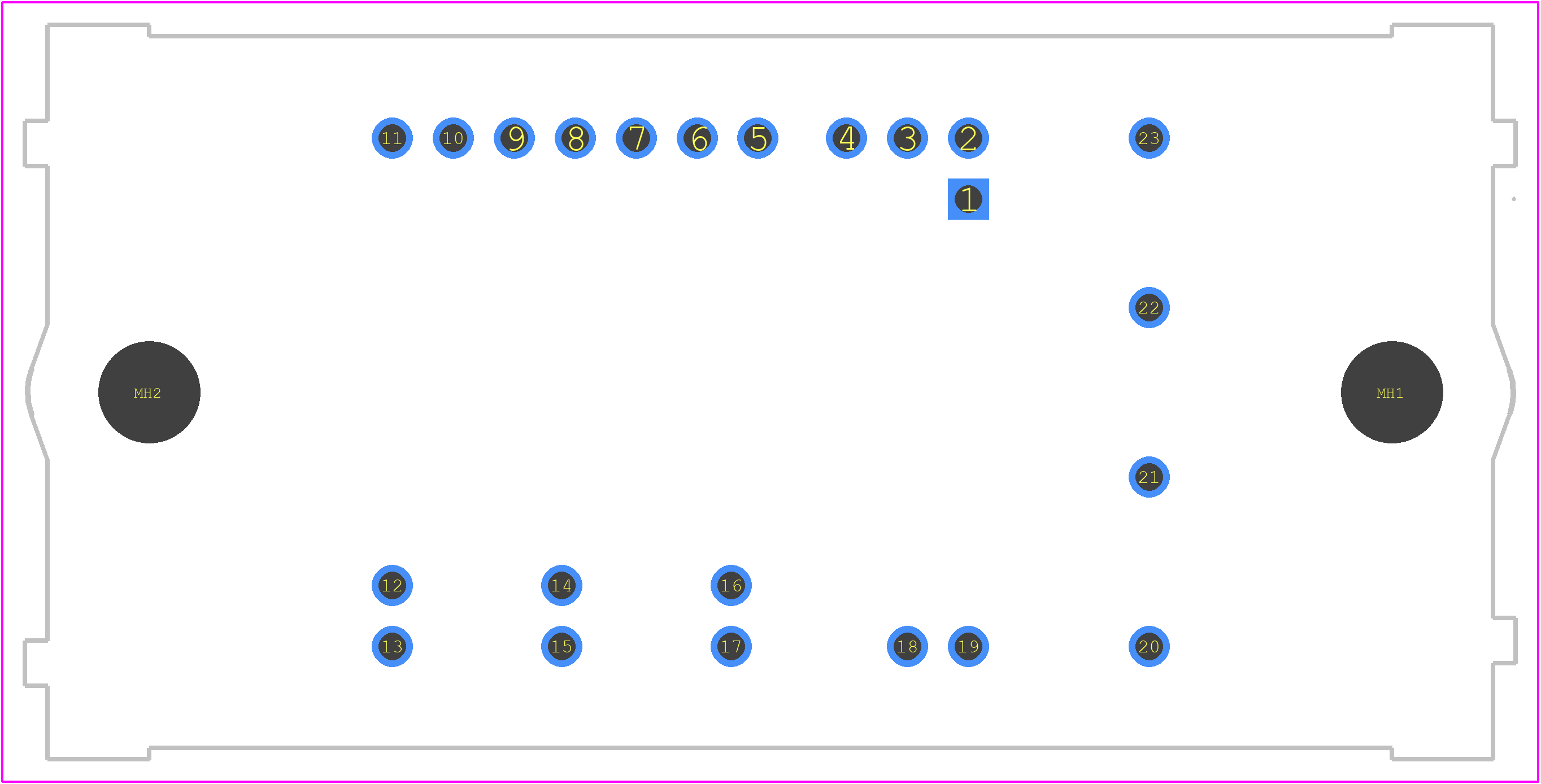

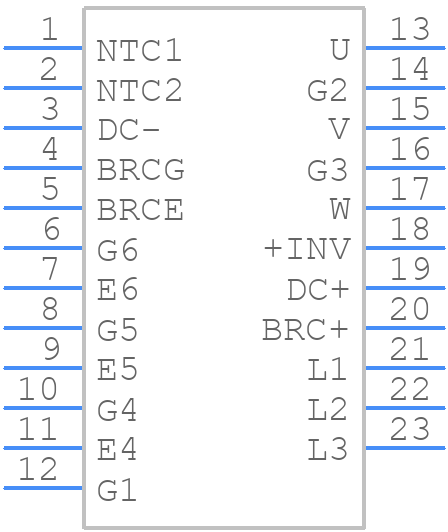

Use the download button to access the V23990-P540-A-PM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V2399,
or try a keyword search, such as IGBTs
