V24A12C500BG - VICOR

Description: Isolated Module DC DC Converter 1 Output 12V 41.67A 18V - 36V Input , 500W , -20°C ~ 100°C

Download V24A12C500BG Model

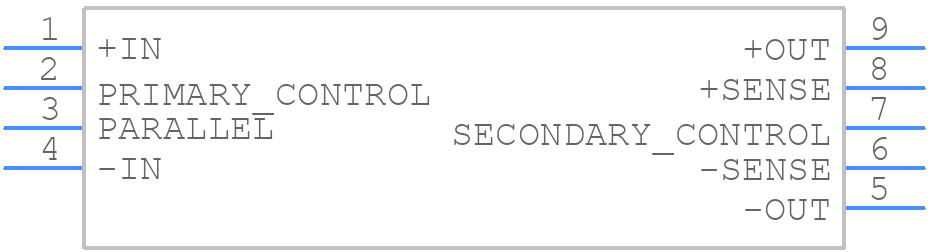

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

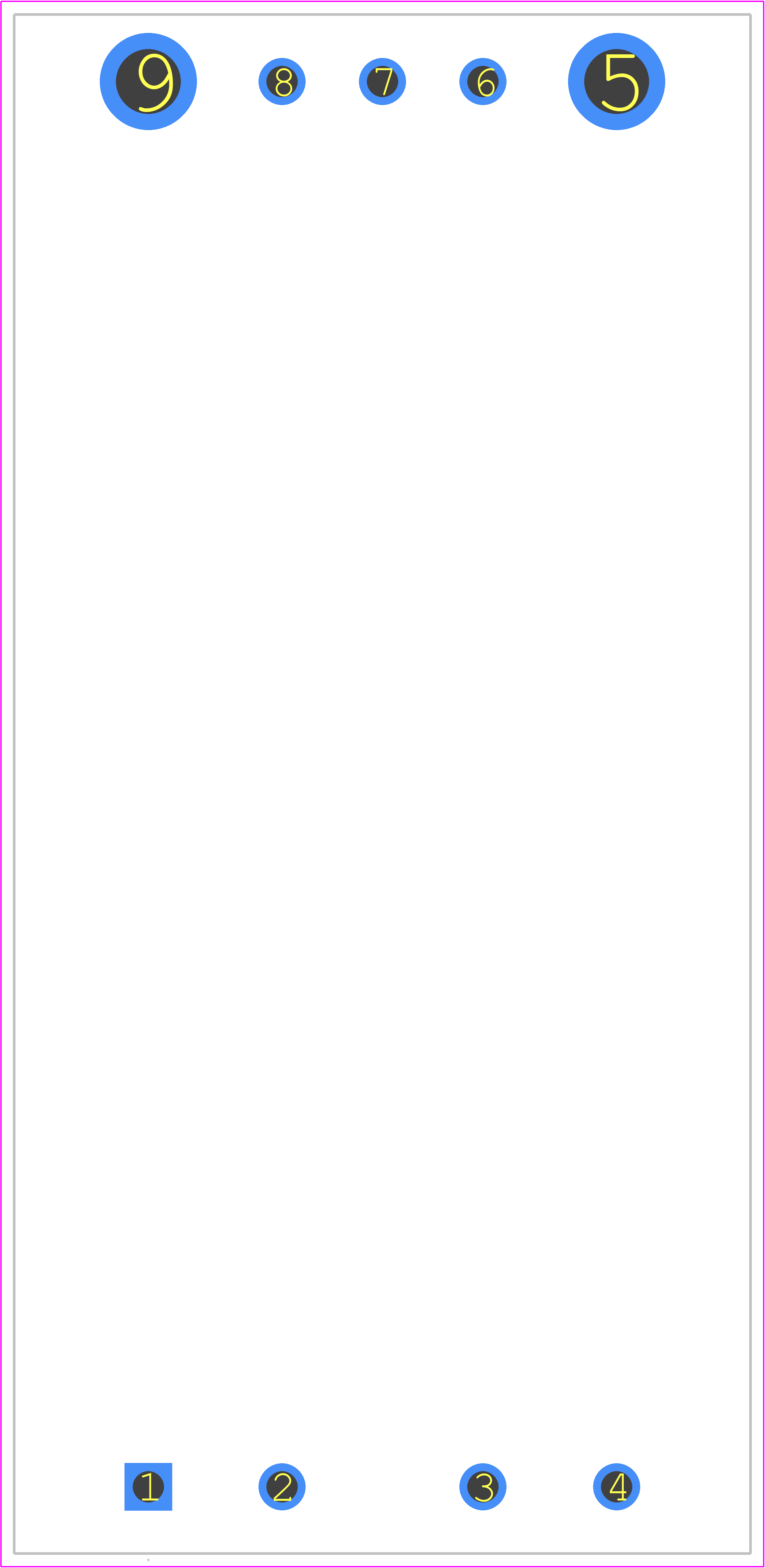

V24A12C500BG - VICOR PCB footprint - Other - Other - V24A12C500BG-1
click to zoom
3D Models
V24A12C500BG - VICOR  - 3D model - Other - V24A12C500BG-1
click to zoom

V24A12C500BG Details

  • Manufacturer Part Number:

    V24A12C500BG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    8.2

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e4

  • Length:

    116.84 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    55.88 mm

V24A12C500BG Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal management system with a heat sink and thermal interface material to ensure efficient heat dissipation. A detailed application note is available from Vicor for specific guidance.
  • To ensure reliable start-up and shutdown, Vicor recommends implementing a soft-start circuit and a voltage supervisor to monitor the input voltage and ensure the converter is enabled only when the input voltage is within the specified range.
  • The maximum allowable capacitance on the output of the V24A12C500BG is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the V24A12C500BG can be used in a parallel configuration to increase power output. However, Vicor recommends using a master-slave configuration with a dedicated control signal to ensure synchronization and stability.
  • Vicor recommends using a fuse with a rating of 5A to 10A, depending on the specific application and input voltage. A slow-blow fuse is recommended to ensure reliable operation and minimize false tripping.
