V24A48T400BG - VICOR

Description: Isolated Module DC DC Converter 1 Output 48V 8.33A 18V - 36V Input

Download V24A48T400BG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

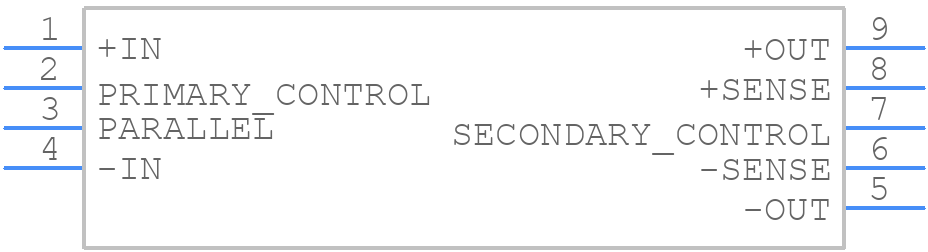

V24A48T400BG - VICOR - PCB symbol
click to zoom
PCB Footprints

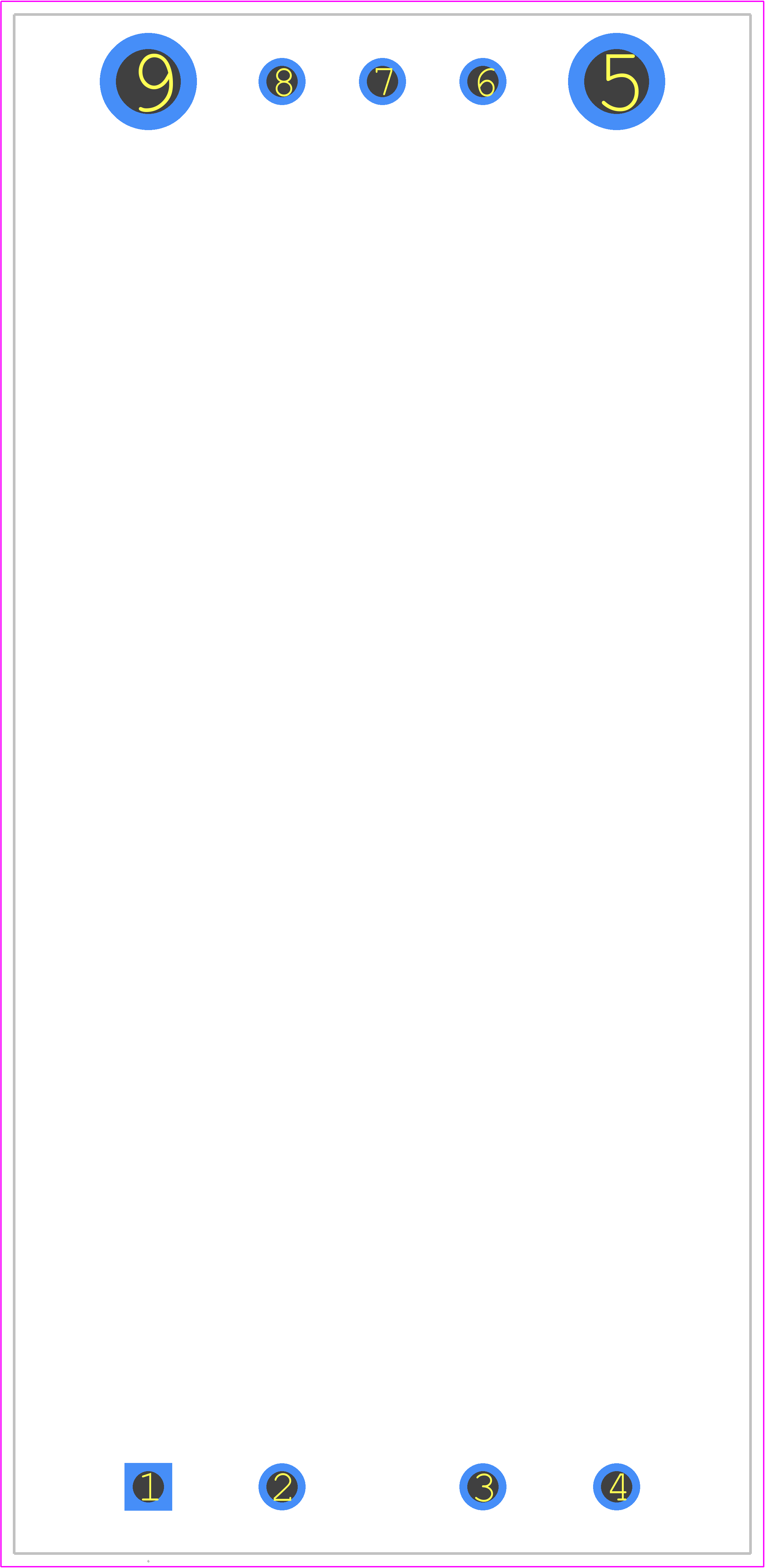

V24A48T400BG - VICOR PCB footprint - Other - Other - V24A48T400BG-3
click to zoom
3D Models
V24A48T400BG - VICOR - 3D model - Other - V24A48T400BG-3
click to zoom

V24A48T400BG Details

  • Manufacturer Part Number:

    V24A48T400BG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e4

  • Length:

    116.84 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    4.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    400 W

  • Trim/Adjustable Output:

    YES

  • Width:

    55.88 mm

V24A48T400BG Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. The datasheet provides a recommended PCB layout and thermal management guidelines.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit and a controlled shutdown sequence. The application note AN-104 provides more details on start-up and shutdown considerations.
  • The maximum allowable input voltage ripple and noise for the V24A48T400BG is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
  • Yes, the V24A48T400BG can be used in a redundant or parallel configuration, but it requires careful consideration of the system design and synchronization of the modules. Vicor recommends consulting with their application engineers for guidance on implementing redundant or parallel configurations.
  • The typical MTBF of the V24A48T400BG is >1 million hours, calculated according to Telcordia SR-332. However, the actual MTBF may vary depending on the application, operating conditions, and environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24A48T400BG Overview

Use the download button to access the V24A48T400BG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24A4, or try a keyword search, such as Power Supply Modules
