V24B12T200BN2 - VICOR

Description: DC-DC Converter Module

Download V24B12T200BN2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

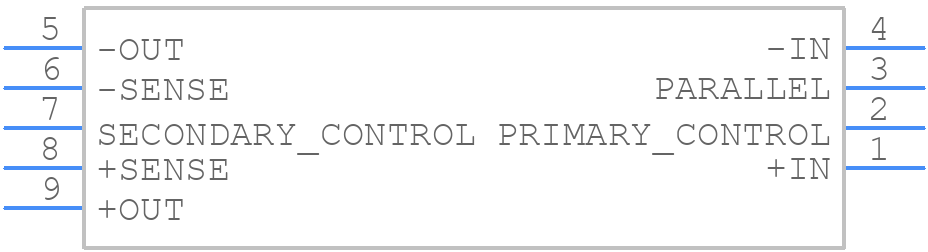

V24B12T200BN2 - VICOR - PCB symbol
click to zoom
PCB Footprints

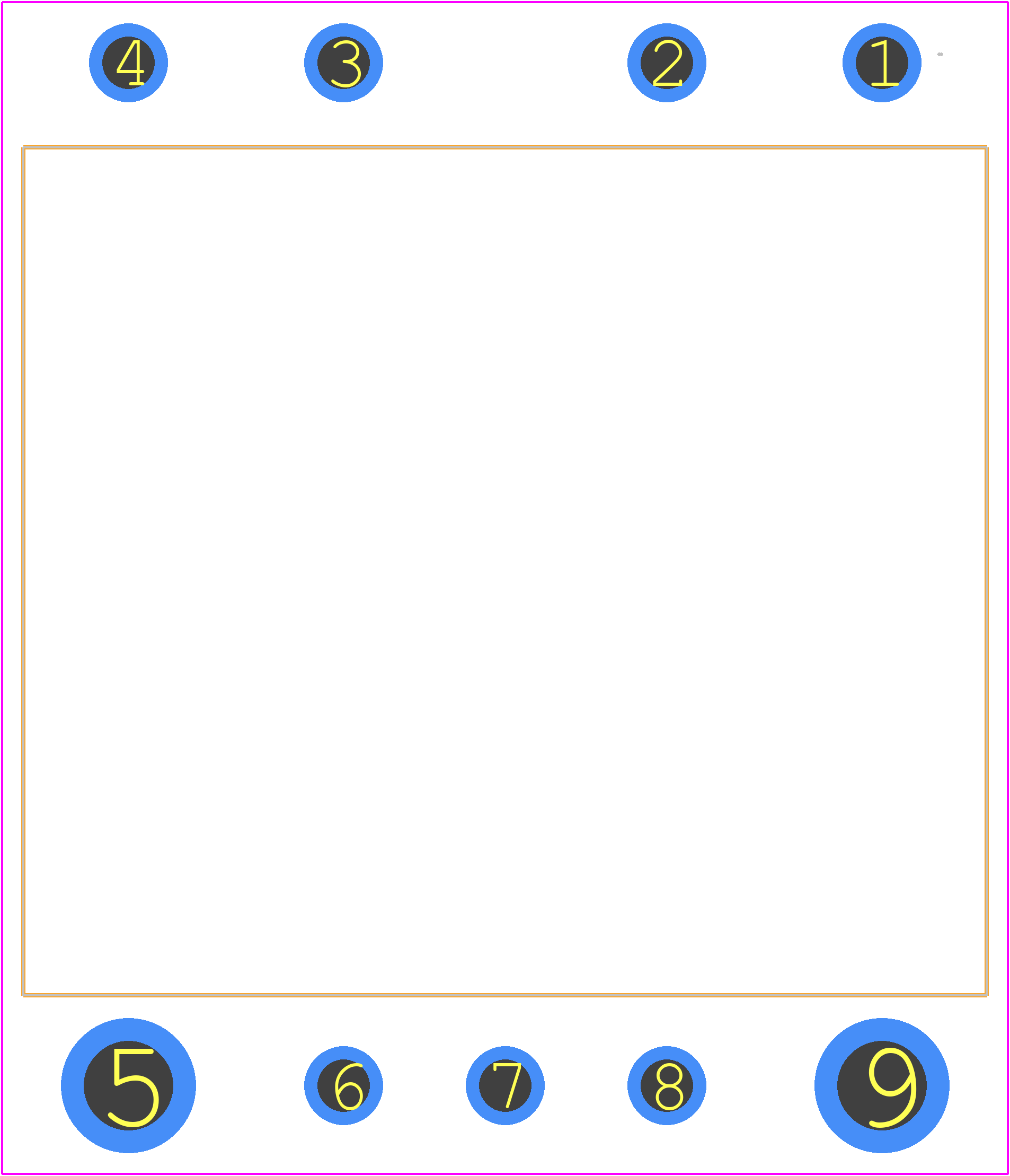

V24B12T200BN2 - VICOR PCB footprint - Other - Other - V24B12T200BN2-1
click to zoom
3D Models
V24B12T200BN2 - VICOR - 3D model - Other - V24B12T200BN2-1
click to zoom

V24B12T200BN2 Details

  • Manufacturer Part Number:

    V24B12T200BN2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e4

  • Length:

    55.88 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    200 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.91 mm

V24B12T200BN2 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
  • Vicor recommends using a soft-start circuit to limit inrush current during start-up. For shutdown, ensure a controlled shutdown sequence to prevent voltage spikes and ensure the module is fully discharged before power-off.
  • Operating the module outside the recommended input voltage range may affect its efficiency, reliability, and output voltage regulation. Vicor recommends staying within the specified input voltage range to ensure optimal performance and prevent damage to the module.
  • Vicor provides troubleshooting guides and application notes that cover common issues and their solutions. It's essential to follow these guides and consult with Vicor's technical support team if needed.
  • Vicor's modules are designed to meet EMI and RFI standards, but it's still essential to follow proper PCB layout and shielding techniques to minimize electromagnetic interference. Consult Vicor's application notes and EMI guidelines for more information.
