V24B5C150BL - VICOR

Description: Isolated DC/DC Converters - Through Hole C 18/36/24 5v/ 30A

Download V24B5C150BL Model

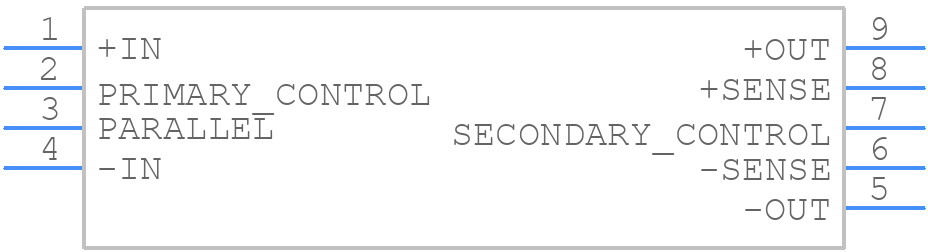

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

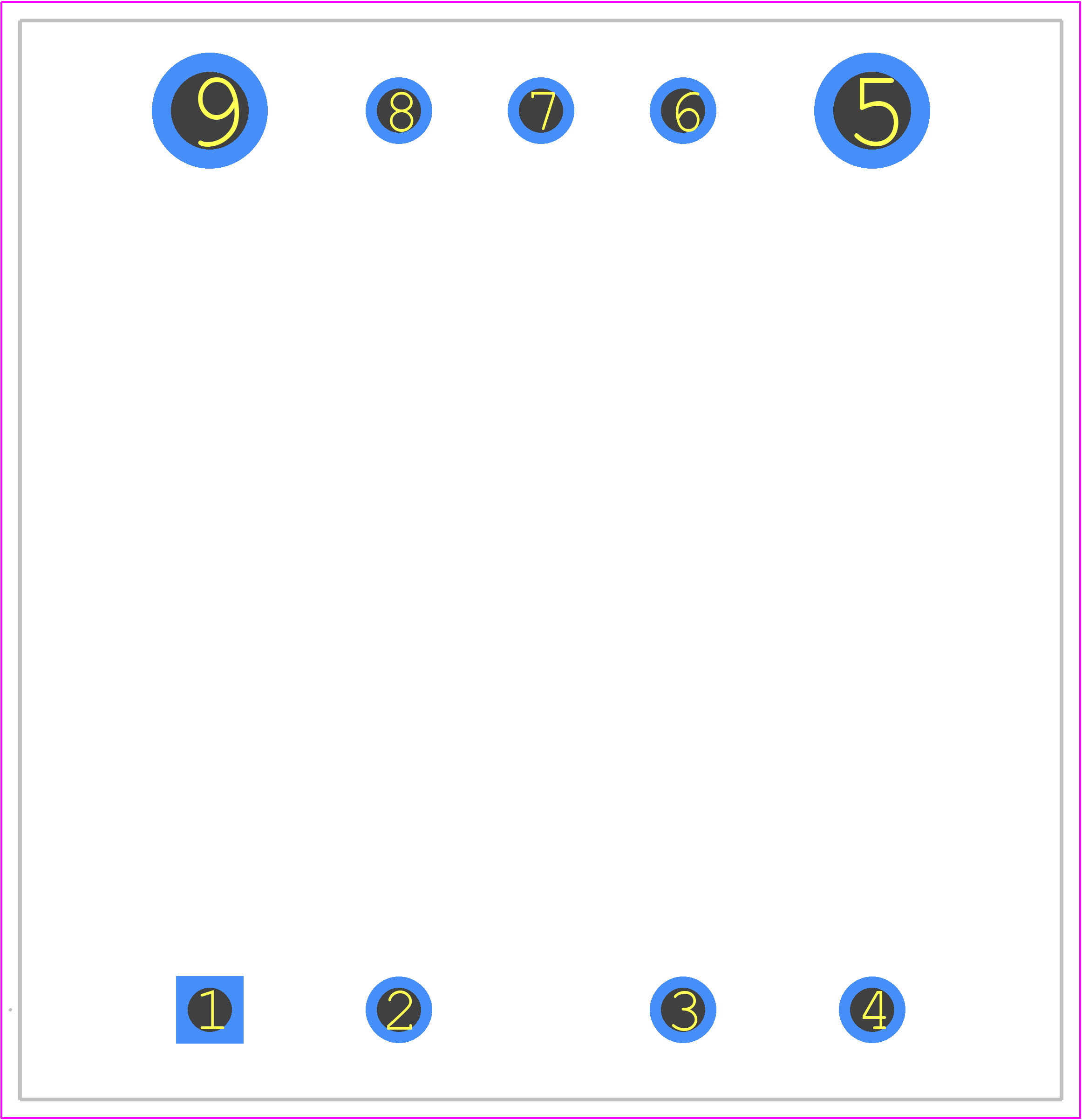

V24B5C150BL - VICOR PCB footprint - Other - Other - V24B5C150BL-2
click to zoom
3D Models
V24B5C150BL - VICOR  - 3D model - Other - V24B5C150BL-2
click to zoom

V24B5C150BL Details

  • Manufacturer Part Number:

    V24B5C150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    55.88 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.91 mm

V24B5C150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum allowed capacitance on the output of the V24B5C150BL is 100uF. Exceeding this value may cause instability or oscillations.
  • Yes, the V24B5C150BL can be used in a parallel configuration for higher power, but it requires careful consideration of the current sharing and thermal management.
  • Vicor recommends a pi-filter configuration with a series inductor and shunt capacitors to minimize input ripple and ensure electromagnetic compatibility (EMC).
