Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. A good thermal design is crucial to ensure the module operates within its temperature range.
Follow Vicor's recommended soldering profile and use a solder with a high melting point (e.g., SAC305). Ensure the module is properly aligned and secured to the PCB using the provided mounting holes. Verify the connections using X-ray inspection or other methods.
Operating the module outside its recommended input voltage range can lead to reduced efficiency, increased heat generation, and potentially even damage to the module. It's essential to ensure the input voltage is within the specified range to guarantee optimal performance and reliability.
Consult Vicor's troubleshooting guide and application notes for guidance on identifying and resolving common issues. Check the input voltage, output load, and thermal conditions to ensure they are within the specified ranges. Use oscilloscopes and thermal imaging tools to diagnose the problem.
Yes, the V24C12C100BG is a high-frequency switching converter, and as such, it can generate electromagnetic interference (EMI). Ensure proper PCB layout, use shielding, and follow Vicor's EMI/EMC guidelines to minimize radiation and ensure compliance with relevant standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V24C12C100BG Overview

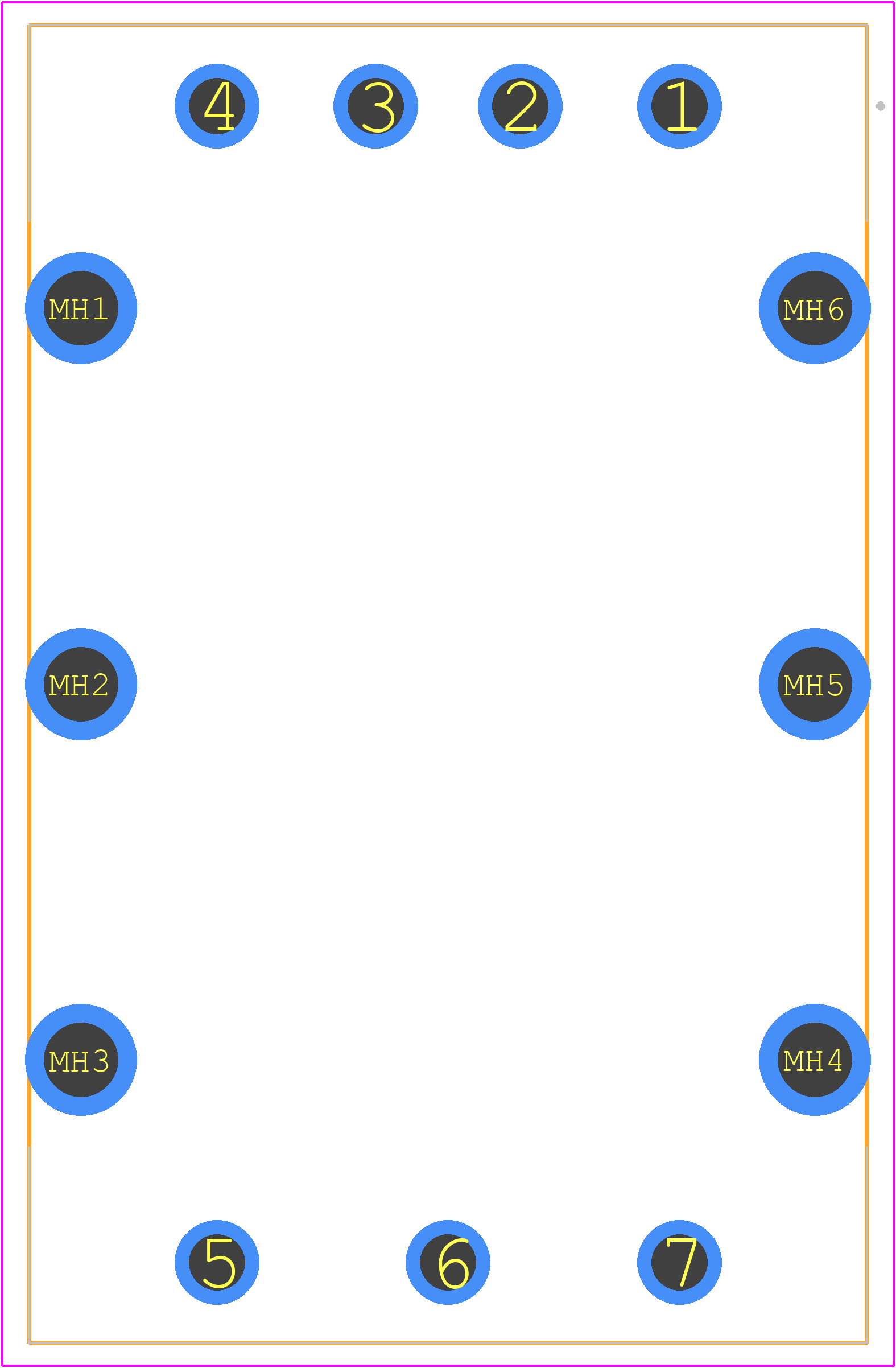

Use the download button to access the V24C12C100BG schematic symbol and PCB footprint.
