V24C12C100BG2 - VICOR

Description: Isolated DC/DC Converters C18 36 24 12.0V8.3A

Download V24C12C100BG2 Model

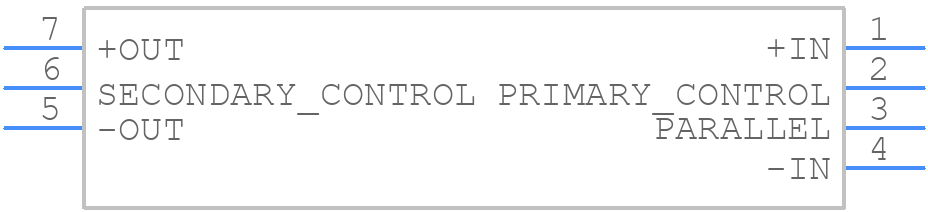

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

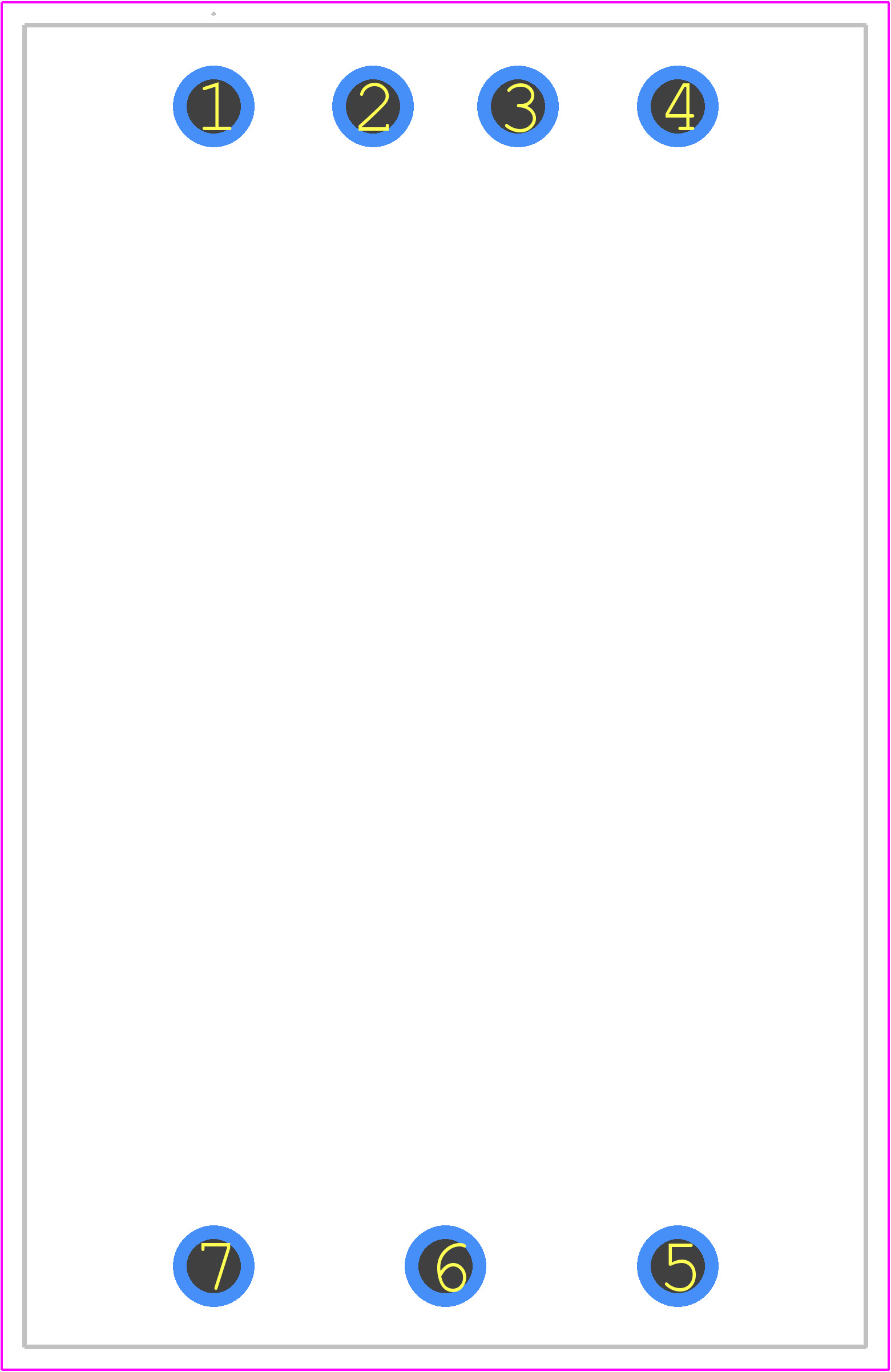

PCB Footprints
V24C12C100BG2 - VICOR PCB footprint - Other - Other - V24C12C100BG2-1
click to zoom
3D Models
V24C12C100BG2 - VICOR  - 3D model - Other - V24C12C100BG2-1
click to zoom

V24C12C100BG2 Details

  • Manufacturer Part Number:

    V24C12C100BG2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e4

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C12C100BG2 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor recommends using a heat sink with a thermal interface material (TIM) and ensuring good airflow around the module. The heat sink should be designed to keep the module's temperature below the maximum operating temperature of 100°C.
  • The maximum output current derating for high temperatures can be found in the datasheet's thermal derating curve. For the V24C12C100BG2, the output current derating is approximately 1.5% per degree Celsius above 50°C.
  • Yes, the V24C12C100BG2 is designed to meet the vibration requirements of various industries, including aerospace and defense. However, it's recommended to follow Vicor's guidelines for vibration testing and to ensure the module is properly secured to the PCB and chassis.
  • Vicor recommends using a minimum of 100uF of input capacitance and following their EMI filtering guidelines to ensure compliance with regulatory requirements and to minimize electromagnetic interference.
