V24C15T50BL2 - VICOR

V24C15T50BL2 Frequently Asked Questions (FAQs)

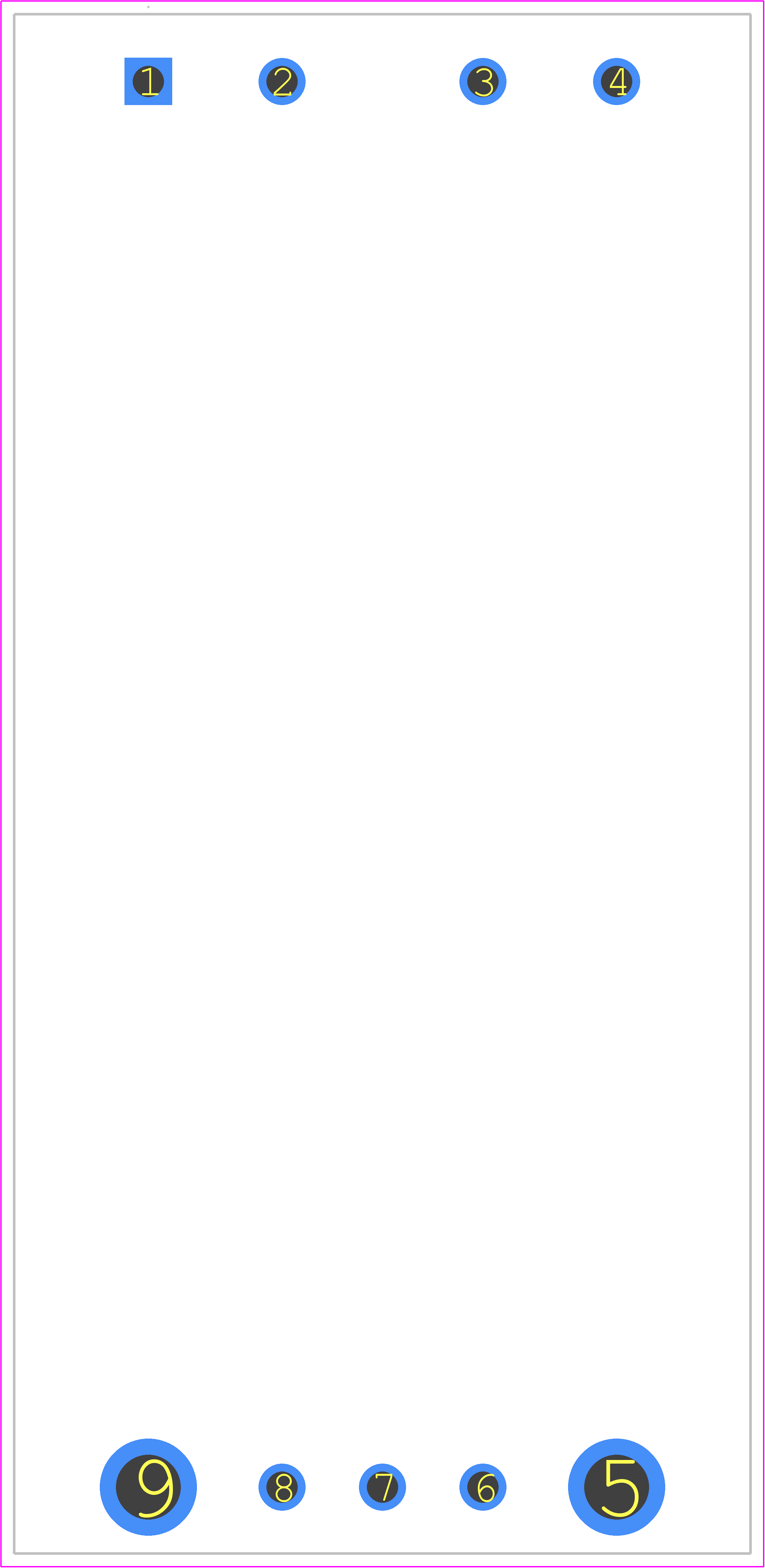

• What is the recommended PCB layout and thermal management for optimal performance?
  Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. The datasheet provides a recommended PCB layout and thermal management guidelines.
• How do I ensure reliable start-up and shutdown of the module?
  To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current and a shutdown circuit to prevent voltage overshoot. The application note AN-104 provides more details on start-up and shutdown considerations.
• What is the maximum allowable capacitance on the output of the module?
  The maximum allowable capacitance on the output of the module is 1000uF. Exceeding this value may cause instability or oscillation. It's recommended to use a capacitance value that is less than or equal to 1000uF.
• Can I use the V24C15T50BL2 in a high-reliability or military application?
  Yes, the V24C15T50BL2 is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in and environmental testing, to ensure the module meets the required standards.
• How do I troubleshoot common issues with the module, such as over-temperature or under-voltage faults?
  Vicor provides a troubleshooting guide in the application note AN-105, which covers common issues and their solutions. Additionally, Vicor's technical support team is available to provide assistance with troubleshooting and fault diagnosis.
