V24C28T150BL - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 150 Vin 24 Vout 28 Grade - T

Download V24C28T150BL Model

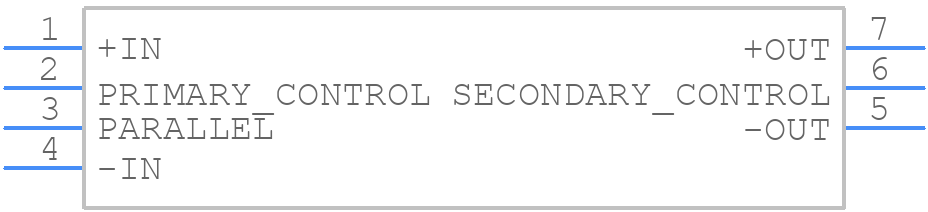

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

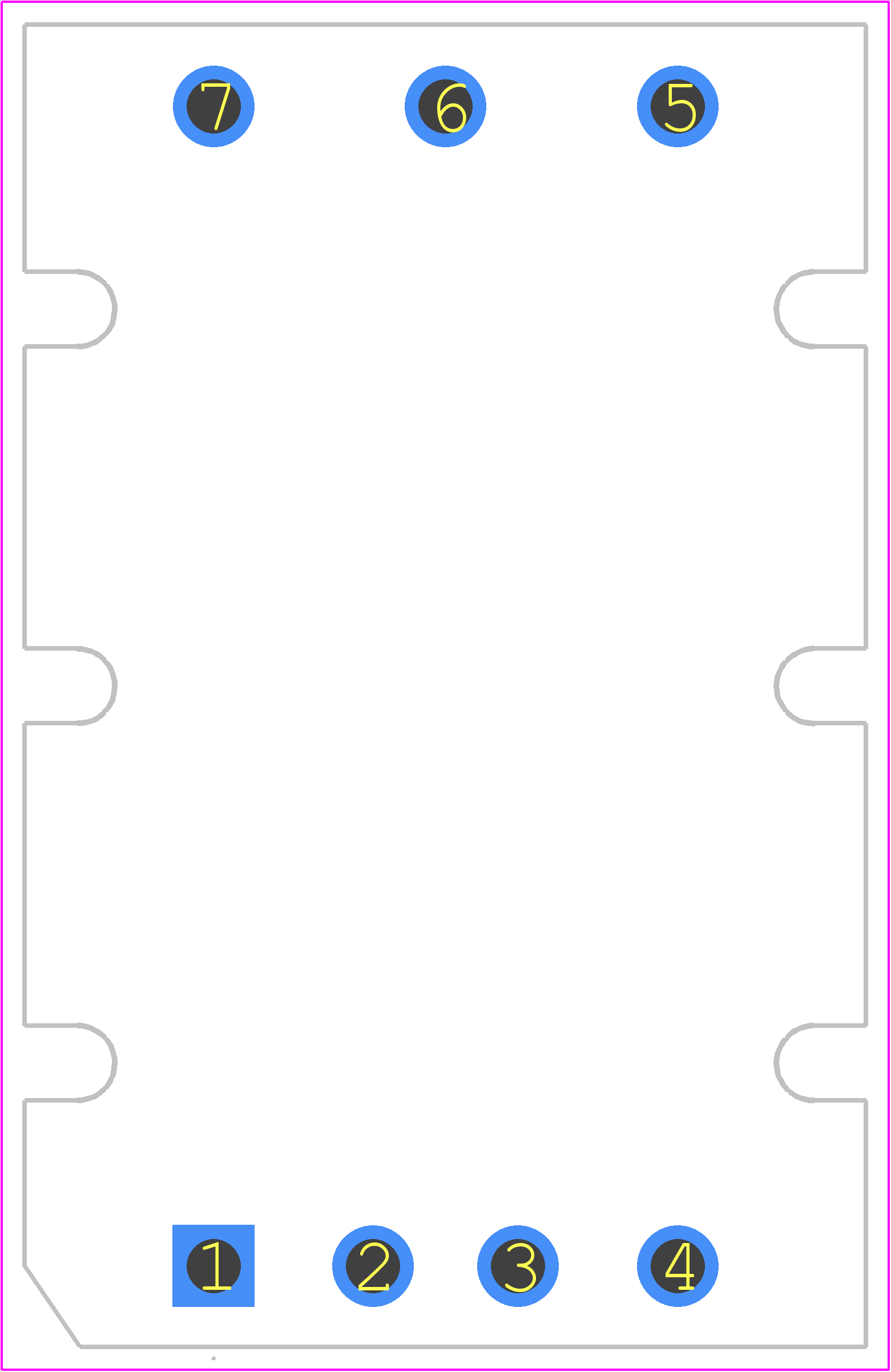

PCB Footprints
V24C28T150BL - VICOR PCB footprint - Other - Other - 57.9 x 36.8 x 12.7 mm_2025-1
click to zoom
3D Models
V24C28T150BL - VICOR  - 3D model - Other - 57.9 x 36.8 x 12.7 mm_2025-1
click to zoom

V24C28T150BL Details

  • Manufacturer Part Number:

    V24C28T150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    2.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C28T150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up sequence.
  • The maximum allowed capacitance on the output of the V24C28T150BL is 100uF. Exceeding this value may cause instability or oscillations.
  • Yes, the V24C28T150BL can be used in a parallel configuration for higher power applications, but it is essential to ensure that the modules are synchronized and share the load current equally to prevent uneven stress and potential failures.
  • Vicor recommends a fuse rating of 5A to 10A, depending on the specific application and input voltage, to protect the module from overcurrent conditions.
