Technical Content
Part Image

V24C36C100BL - VICOR

Description: Isolated DC/DC Converters C 18/36/24 36v/ 2.78A

Download V24C36C100BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

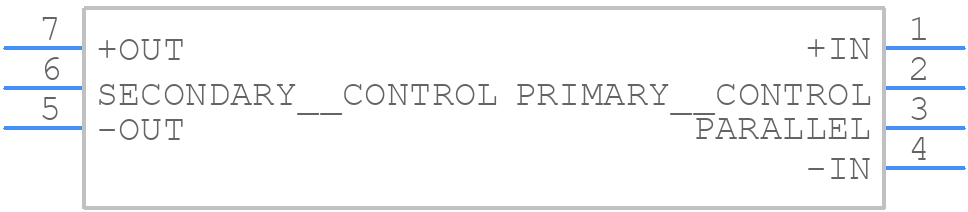

Symbol
V24C36C100BL - VICOR - PCB symbol
click to zoom

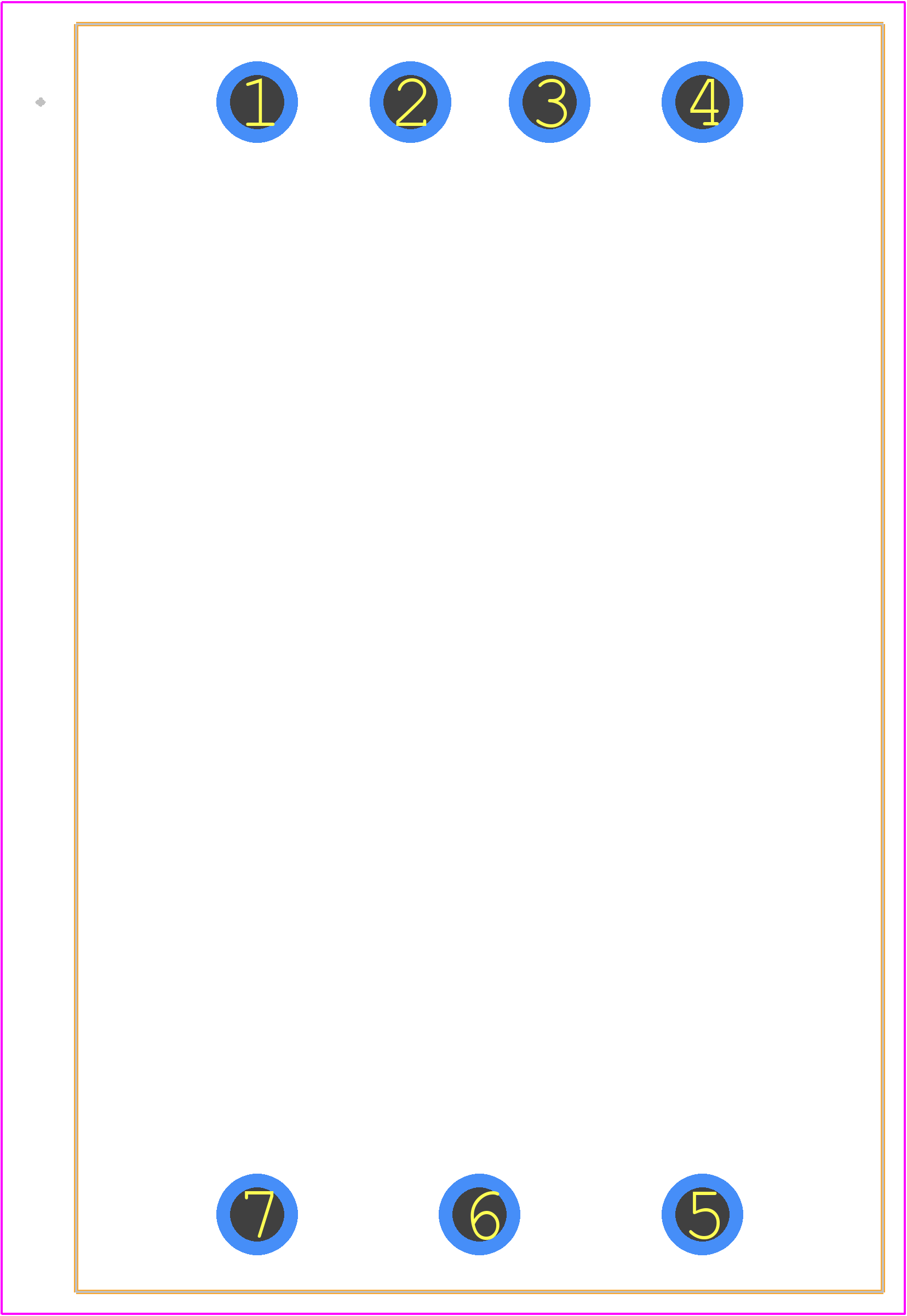

PCB Footprints
V24C36C100BL - VICOR PCB footprint - Other - Other - V24C36C100BL-1
click to zoom
3D Models
V24C36C100BL - VICOR - 3D model - Other - V24C36C100BL-1
click to zoom

V24C36C100BL Details

  • Manufacturer Part Number:

    V24C36C100BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    39.6 V

  • Output Voltage-Min:

    3.6 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C36C100BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. Proper thermal management is crucial to ensure the module's reliability and performance.
  • Use a combination of ceramic and electrolytic capacitors at the input and output of the module to ensure proper decoupling. The recommended values are 10uF ceramic and 100uF electrolytic capacitors at the input, and 10uF ceramic and 22uF electrolytic capacitors at the output.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the module's performance and reliability.
  • Yes, the V24C36C100BL can be used in a parallel configuration to increase the output power. However, it's essential to ensure that the modules are properly synchronized and that the output currents are balanced to avoid uneven stress and potential reliability issues.
  • The recommended input fuse rating is 5A slow-blow fuse. This ensures that the module is protected from input overcurrent conditions and prevents damage to the internal components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C36C100BL Overview

Use the download button to access the V24C36C100BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C3, or try a keyword search, such as Power Supply Modules
