V275SM20 - LITTELFUSE

Description: Varistors SURFACE MOUNT SM20 VARISTORS

Download V275SM20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

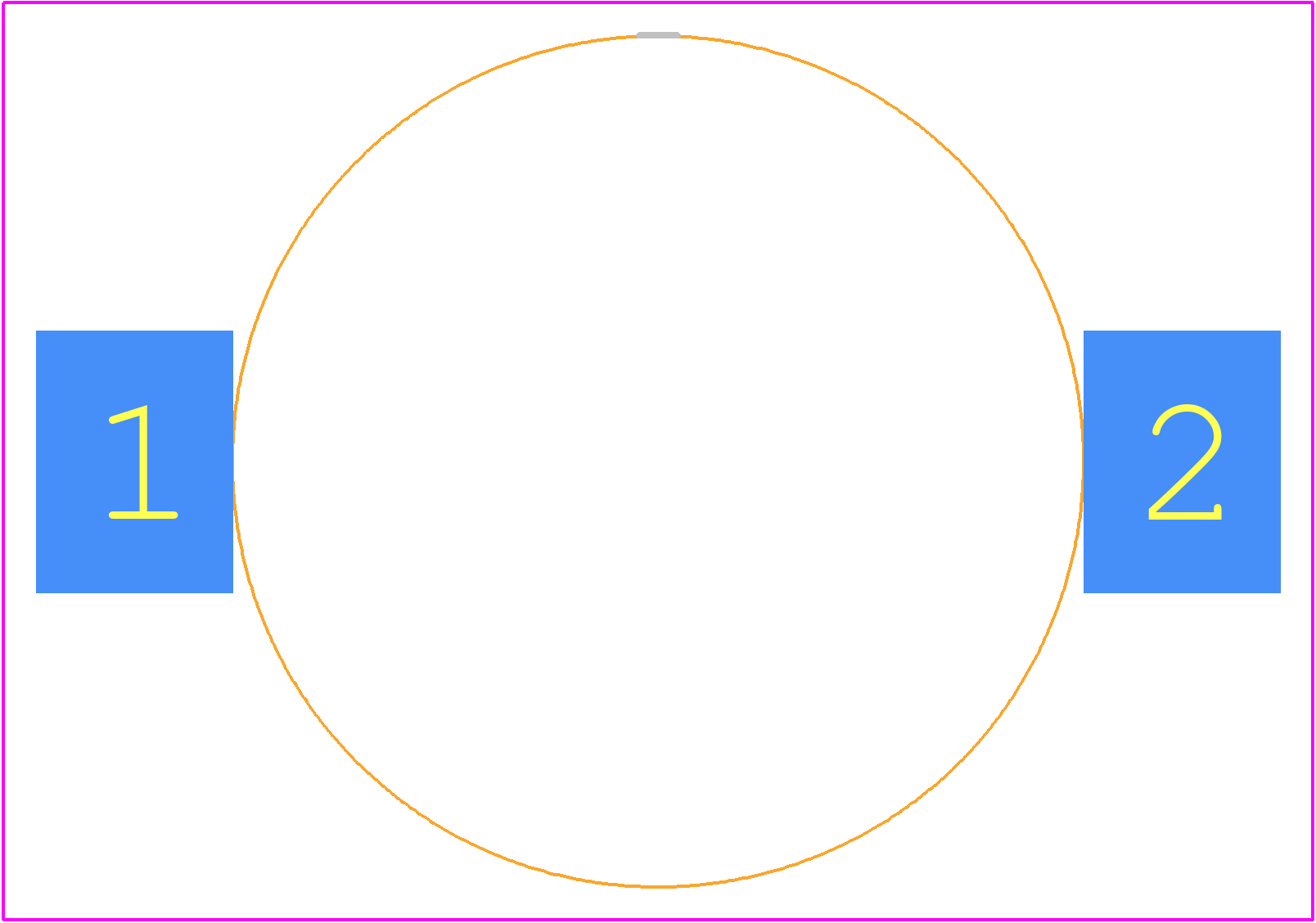

V275SM20 - LITTELFUSE PCB footprint - Other - Other - V275SM20-1
click to zoom
3D Models
V275SM20 - LITTELFUSE  - 3D model - Other - V275SM20-1
click to zoom

V275SM20 Details

  • Manufacturer Part Number:

    V275SM20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Circuit RMS Voltage-Max:

    275 V

  • Energy Absorbing Capacity-Max:

    140 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    26 mm

  • Package Height:

    10.5 mm

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CIRCULAR

  • Packing Method:

    WAFFLE TRAY

  • Rated Temperature:

    85 °C

  • Reference Standard:

    UL

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    MATTE TIN

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    LUG

  • Working Voltage:

    369 V

V275SM20 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the V275SM20 is a rectangular pad with dimensions of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • Yes, the V275SM20 is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at temperatures above 125°C.
  • To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a reflow oven or a hot air gun to solder the device, and avoid applying excessive force or pressure to the device during the soldering process.
  • Store the V275SM20 in a dry, cool place away from direct sunlight and moisture. Handle the device by the body, avoiding touching the leads or pads to prevent electrostatic discharge (ESD) damage.
  • Yes, the V275SM20 is designed to withstand vibrations up to 10g and shocks up to 100g, making it suitable for use in high-vibration or high-shock applications. However, it's recommended to follow proper mounting and soldering procedures to ensure the device remains securely attached to the PCB.
