V28C48C100BL - VICOR

Description: Isolated DC/DC Converters - Through Hole C 9/36/28 48v/ 2.08A

Download V28C48C100BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

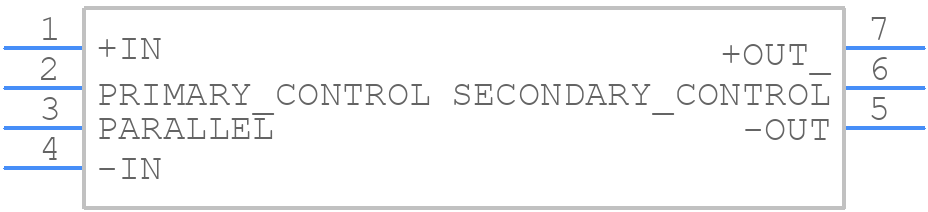

V28C48C100BL - VICOR - PCB symbol
click to zoom
PCB Footprints

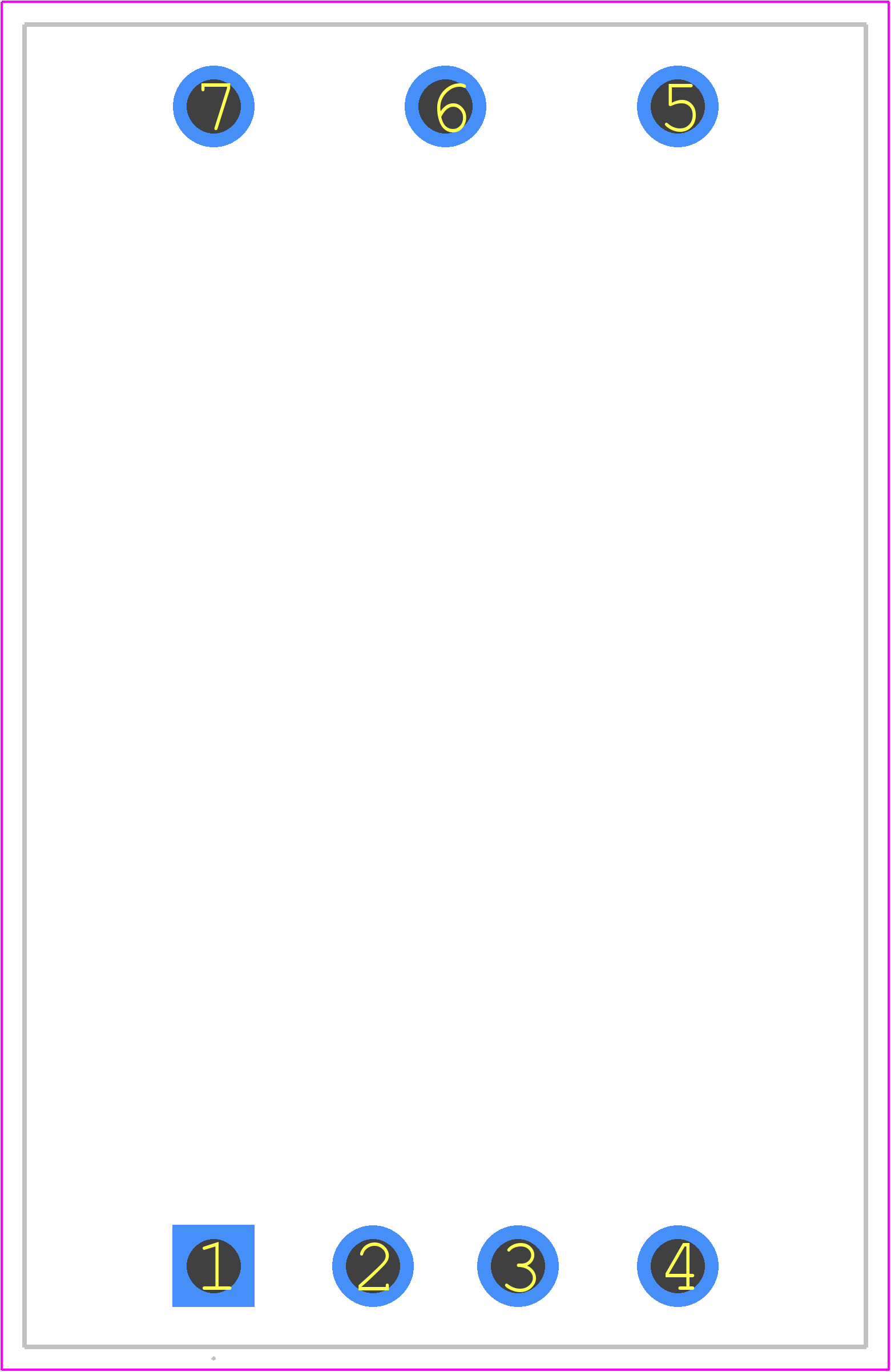

V28C48C100BL - VICOR PCB footprint - Other - Other - V28C48C100BL-3
click to zoom
3D Models
V28C48C100BL - VICOR - 3D model - Other - V28C48C100BL-3
click to zoom

V28C48C100BL Details

  • Manufacturer Part Number:

    V28C48C100BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    4.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V28C48C100BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. Proper thermal management is crucial to ensure the module's reliability and performance.
  • Use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, ensure the input voltage is within the recommended range (18-36V) to prevent damage to the module.
  • The output current derating for high ambient temperatures is typically 1.5% per degree Celsius above 30°C. Consult Vicor's application notes or contact their support team for specific derating curves.
  • Yes, the V28C48C100BL can be used in a parallel configuration to increase output power. However, it's essential to ensure proper synchronization and current sharing between the modules to prevent uneven stress and potential damage.
  • Vicor recommends using a low-ESR ceramic capacitor with a value of 10-22μF, placed as close as possible to the input pins. This helps to filter input noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V28C48C100BL Overview

Use the download button to access the V28C48C100BL schematic symbol, PCB footprint, and 3D model.
