V300C12T150BL2 - VICOR

Description: Isolated Module DC DC Converter 1 Output 12V 150W 12.5A 180V - 375V Input

Download V300C12T150BL2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

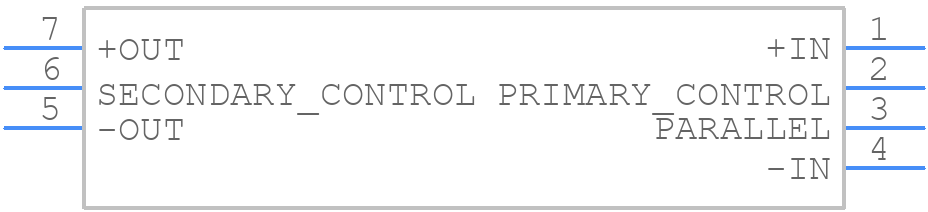

Symbol
V300C12T150BL2 - VICOR - PCB symbol
click to zoom

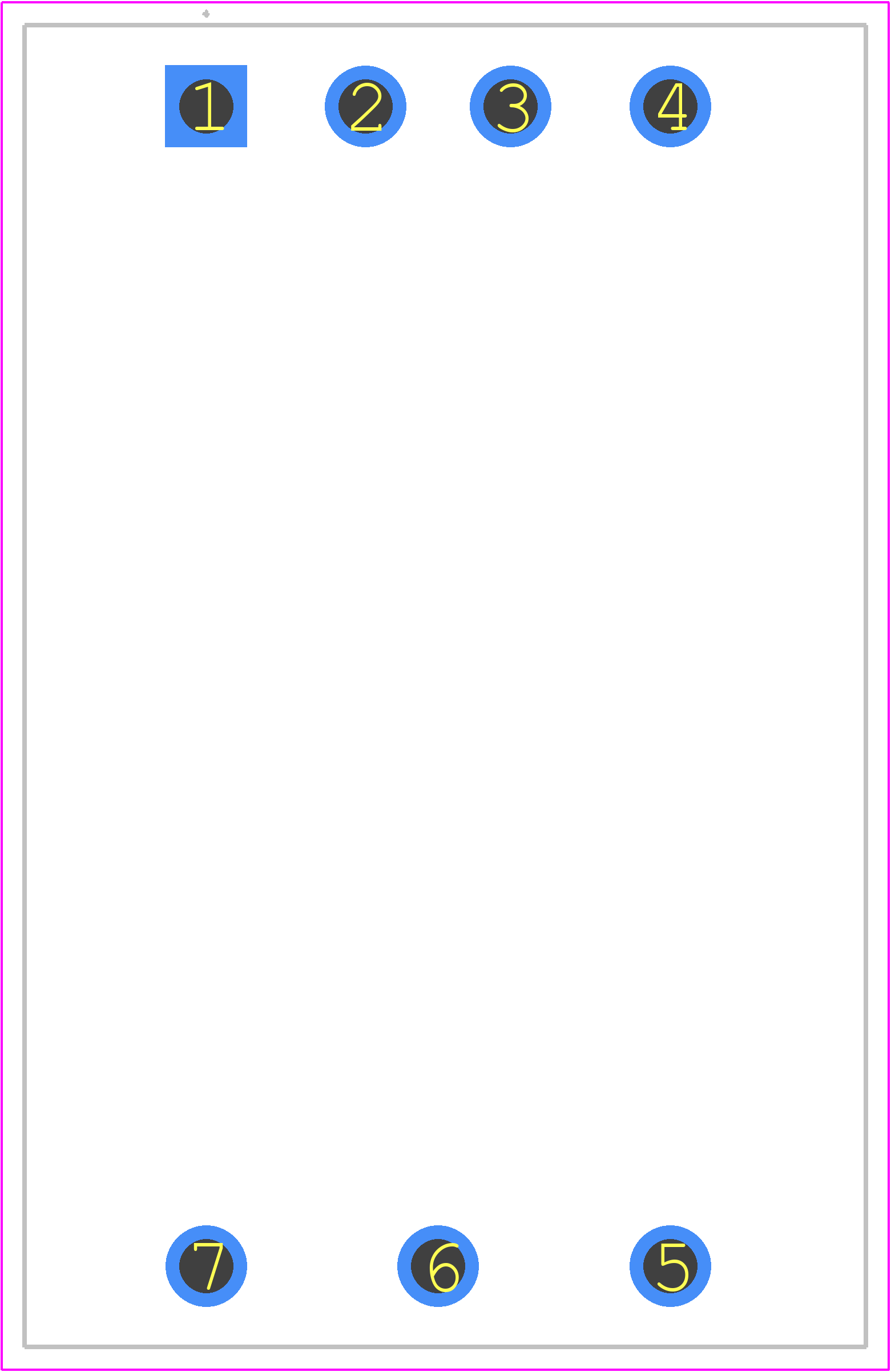

PCB Footprints
V300C12T150BL2 - VICOR PCB footprint - Other - Other - V300C12T150BL2-1
click to zoom
3D Models
V300C12T150BL2 - VICOR - 3D model - Other - V300C12T150BL2-1
click to zoom

V300C12T150BL2 Details

  • Manufacturer Part Number:

    V300C12T150BL2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    375 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V300C12T150BL2 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design and layout guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure proper thermal management and minimize electromagnetic interference (EMI).
  • Vicor recommends using a soft-start circuit to limit the inrush current during start-up, and a controlled shutdown sequence to prevent voltage spikes and ensure safe shutdown. Consult the datasheet and application notes for more information.
  • Operating the converter outside of the recommended input voltage range may affect its efficiency, reliability, and output voltage regulation. Vicor recommends operating the converter within the specified input voltage range to ensure optimal performance and reliability.
  • Vicor provides troubleshooting guides and FAQs on their website. Common issues can often be resolved by checking the input voltage, output load, and thermal management. Consult the datasheet and application notes for more information.
  • The V300C12T150BL2 meets various safety certifications such as UL, EN, and IEC. Vicor recommends following proper safety precautions when handling and installing the converter, including ensuring proper insulation, grounding, and clearance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V300C12T150BL2 Overview

Use the download button to access the V300C12T150BL2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V300C, or try a keyword search, such as Power Supply Modules
