V300C15T150BL3 - VICOR

Description: Isolated DC/DC Converters - Through Hole T 180375300 15v 10A

Download V300C15T150BL3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

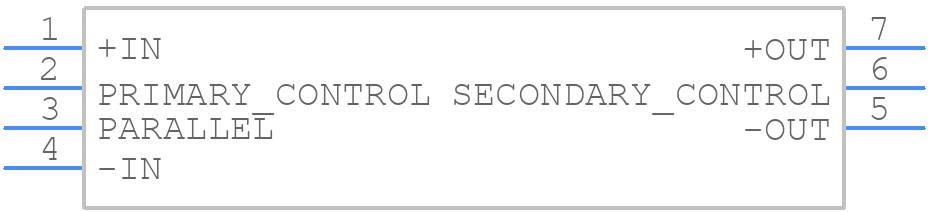

Symbol
V300C15T150BL3 - VICOR - PCB symbol
click to zoom

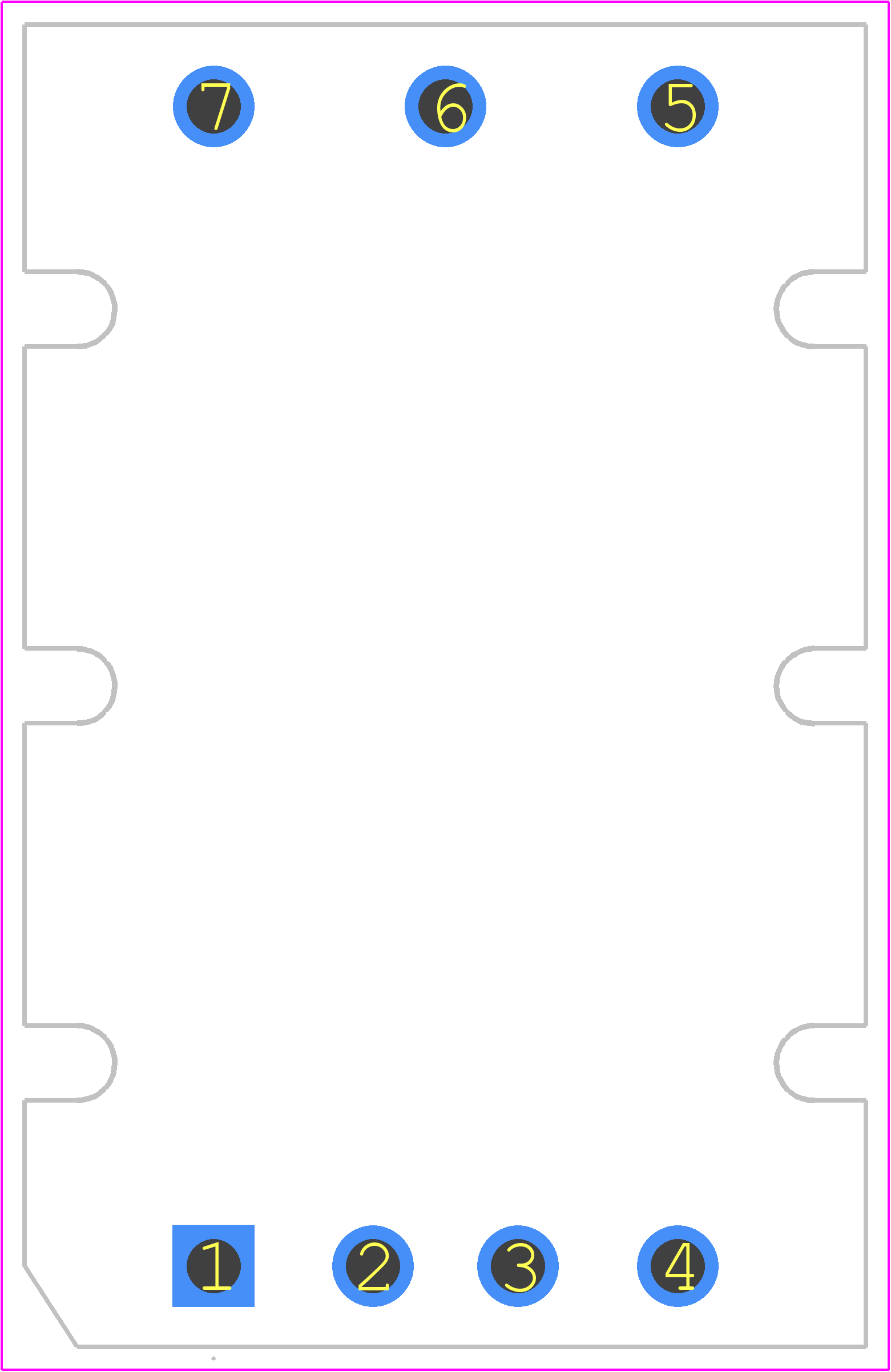

PCB Footprints
V300C15T150BL3 - VICOR PCB footprint - Other - Other - 57.9 x 36.8 x 12.7mm
click to zoom
3D Models
V300C15T150BL3 - VICOR - 3D model - Other - 57.9 x 36.8 x 12.7mm
click to zoom

V300C15T150BL3 Details

  • Manufacturer Part Number:

    V300C15T150BL3

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    375 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    1.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V300C15T150BL3 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor recommends following their recommended start-up and shutdown sequences, which typically involve ramping up the input voltage and enabling the module's output in a controlled manner. This helps prevent damage to the module and ensures reliable operation.
  • Operating the module outside of its specified temperature range can affect its performance, reliability, and lifespan. Vicor recommends operating the module within its specified temperature range to ensure optimal performance and reliability.
  • Vicor provides troubleshooting guides and application notes that outline common issues and their solutions. It's recommended to consult these resources and follow Vicor's recommended troubleshooting procedures to identify and resolve issues quickly and effectively.
  • Vicor provides EMI and EMC guidelines and recommendations in their application notes and datasheets. It's recommended to follow these guidelines and ensure that the module is used in a system that meets relevant EMI and EMC standards, such as EN 55022 and EN 55024.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V300C15T150BL3 Overview

Use the download button to access the V300C15T150BL3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V300C, or try a keyword search, such as Power Supply Modules
