V300C24C75BL - VICOR

Description: Isolated Module DC DC Converter 1 Output 24V 3.13A 180V - 375V Input , 3kV , 75W , -20°C ~ 100°C

Download V300C24C75BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

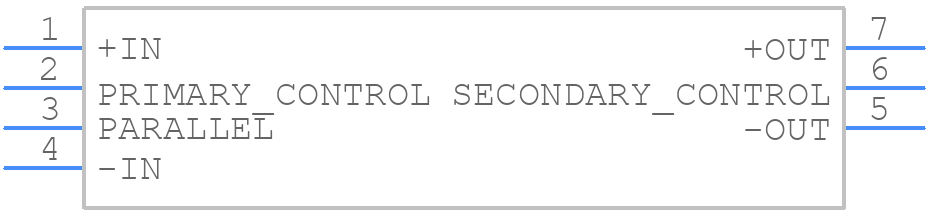

V300C24C75BL - VICOR - PCB symbol
click to zoom
PCB Footprints

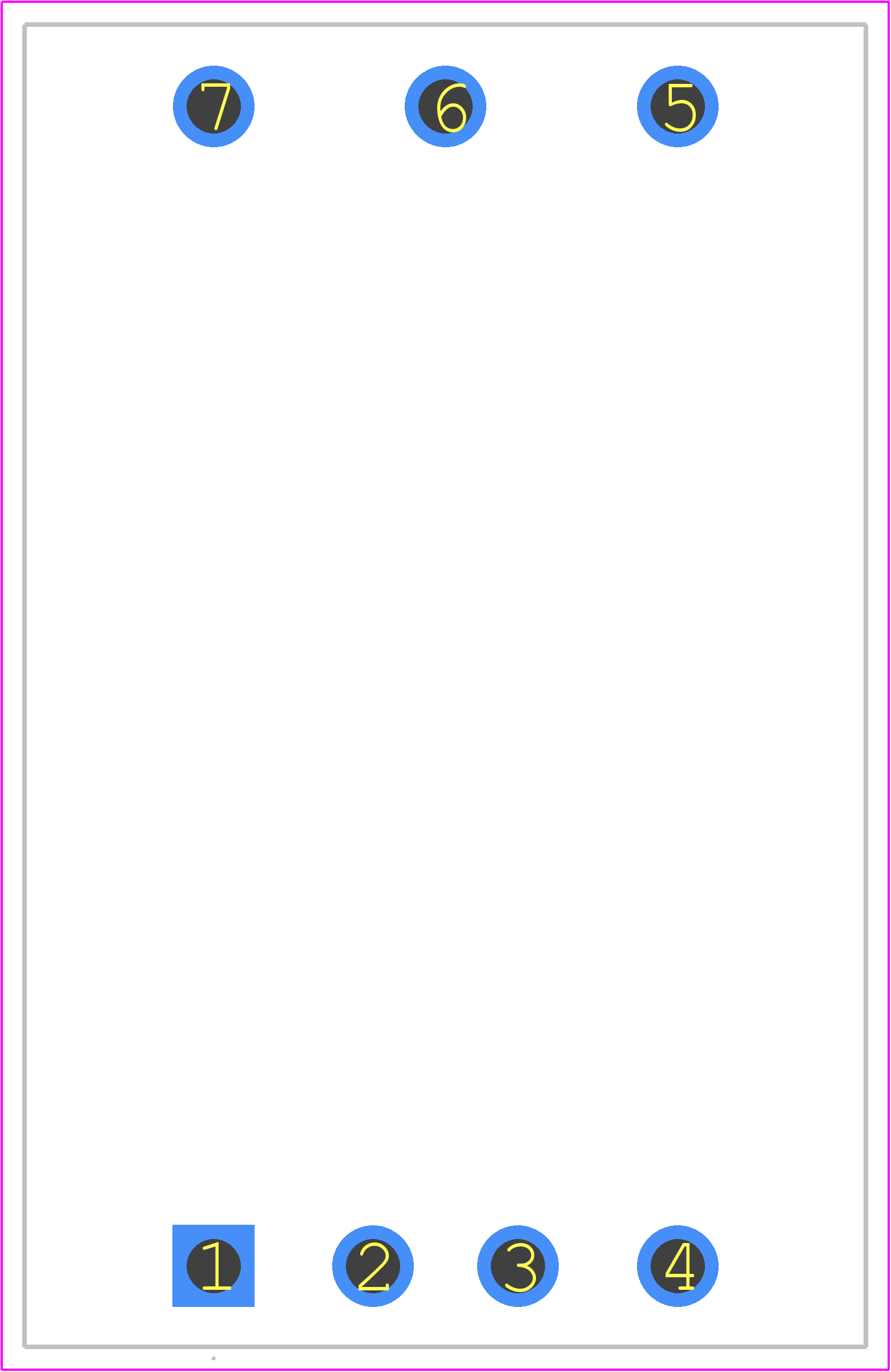

V300C24C75BL - VICOR PCB footprint - Other - Other - V300C24C75BL-1
click to zoom
3D Models
V300C24C75BL - VICOR - 3D model - Other - V300C24C75BL-1
click to zoom

V300C24C75BL Details

  • Manufacturer Part Number:

    V300C24C75BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    375 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    2.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    75 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V300C24C75BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink. Vicor provides a reference design and layout guidelines in their application notes.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the output voltage. The application notes provide guidance on implementing these circuits.
  • The maximum allowable capacitance on the output of the V300C24C75BL is 2200uF. Exceeding this value may cause instability or oscillation. Vicor recommends using a capacitance value that is less than or equal to 2200uF to ensure stable operation.
  • Vicor recommends using a TVS (Transient Voltage Suppressor) diode or a surge protector device at the input of the converter to protect it from voltage transients and surges. The application notes provide guidance on selecting and implementing these devices.
  • The maximum operating temperature range for the V300C24C75BL is -40°C to +100°C. However, the converter's performance and reliability may be affected at temperatures above 85°C. Vicor recommends derating the output power and using a heat sink to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V300C24C75BL Overview

Use the download button to access the V300C24C75BL schematic symbol, PCB footprint, and 3D model.
