The recommended PCB footprint for the V33ZA05P is a rectangular pad with a minimum size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the pads. Avoid applying excessive force or pressure during soldering.
The maximum operating temperature range for the V33ZA05P is -40°C to 125°C, with a derating of 1.33mA/°C above 25°C.
Yes, the V33ZA05P is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
To ensure ESD protection, handle the V33ZA05P with an ESD wrist strap or mat, and store the device in an ESD-protective package. Avoid touching the device's pins or leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V33ZA05P Overview

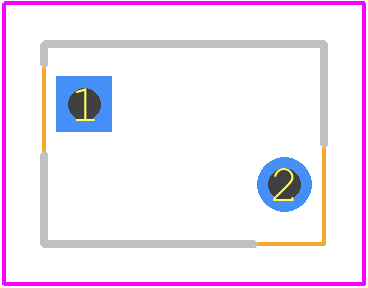

Use the download button to access the V33ZA05P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V33ZA,
or try a keyword search, such as Varistor
